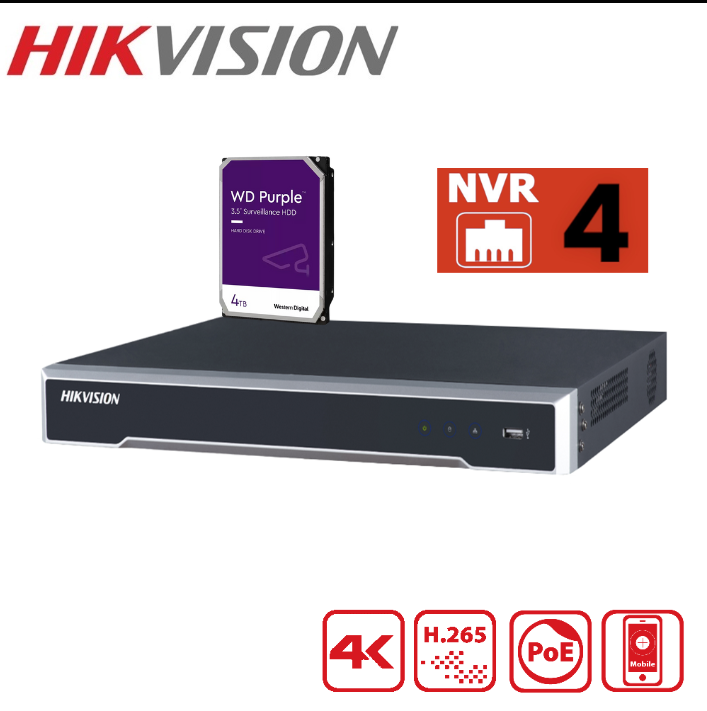

Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P(STD)/AUS With Hard Drive 4TB

Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P(STD)/AUS

With Hard Drive 4 TB

• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch IP camera inputs
• 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)
• 4-ch synchronous playback at up to 8MP resolution

4-ch 1U 4 PoE 4K NVR | DS-7604NI-I1/4P

Specification

• Video And Audio

• IP Video Input4-ch Up to 12 MP resolution
• HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Incoming Bandwidth40 Mbps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
• Synchronous Playback4-ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF

• Network

• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE

• Interface4 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

• Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 8 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out4/1

• General

• Power Supply48 VDC, 1.8 A
• Consumption≤ 15 W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight≤ 1.18 Kg (2.6 lb)
