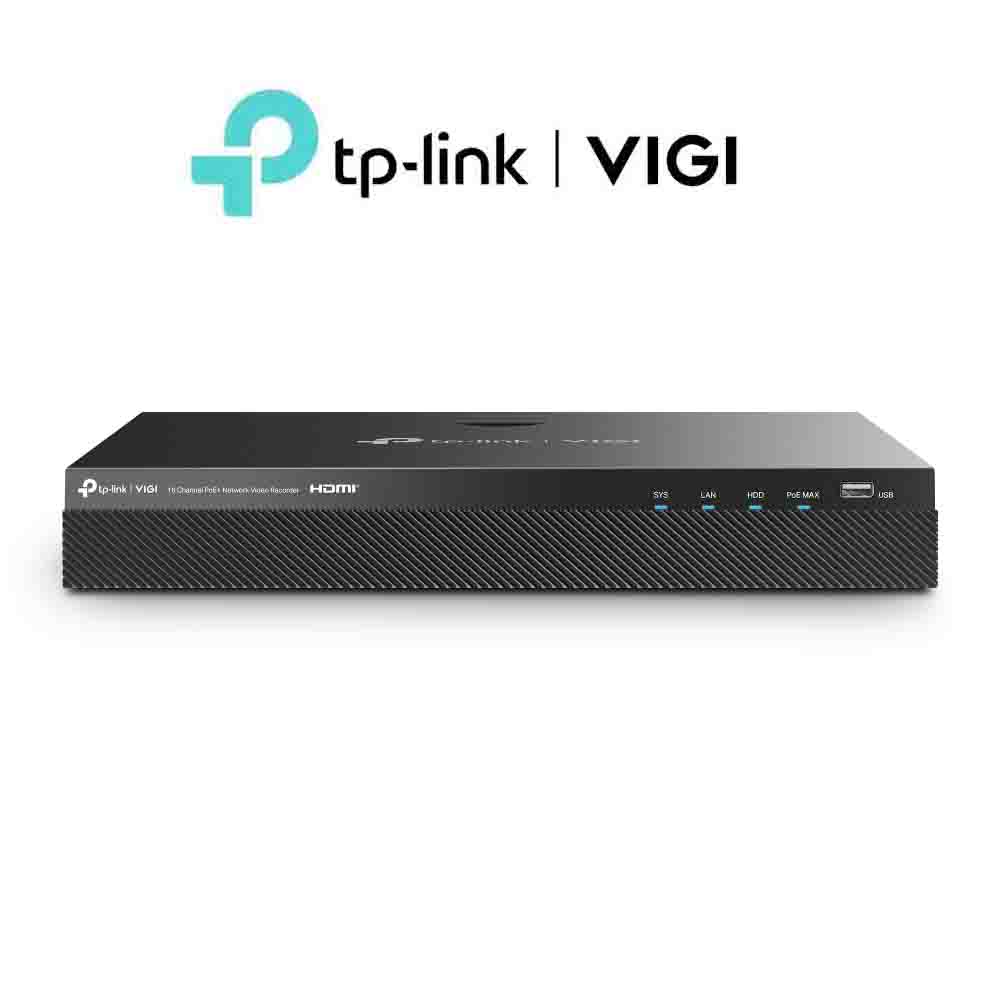

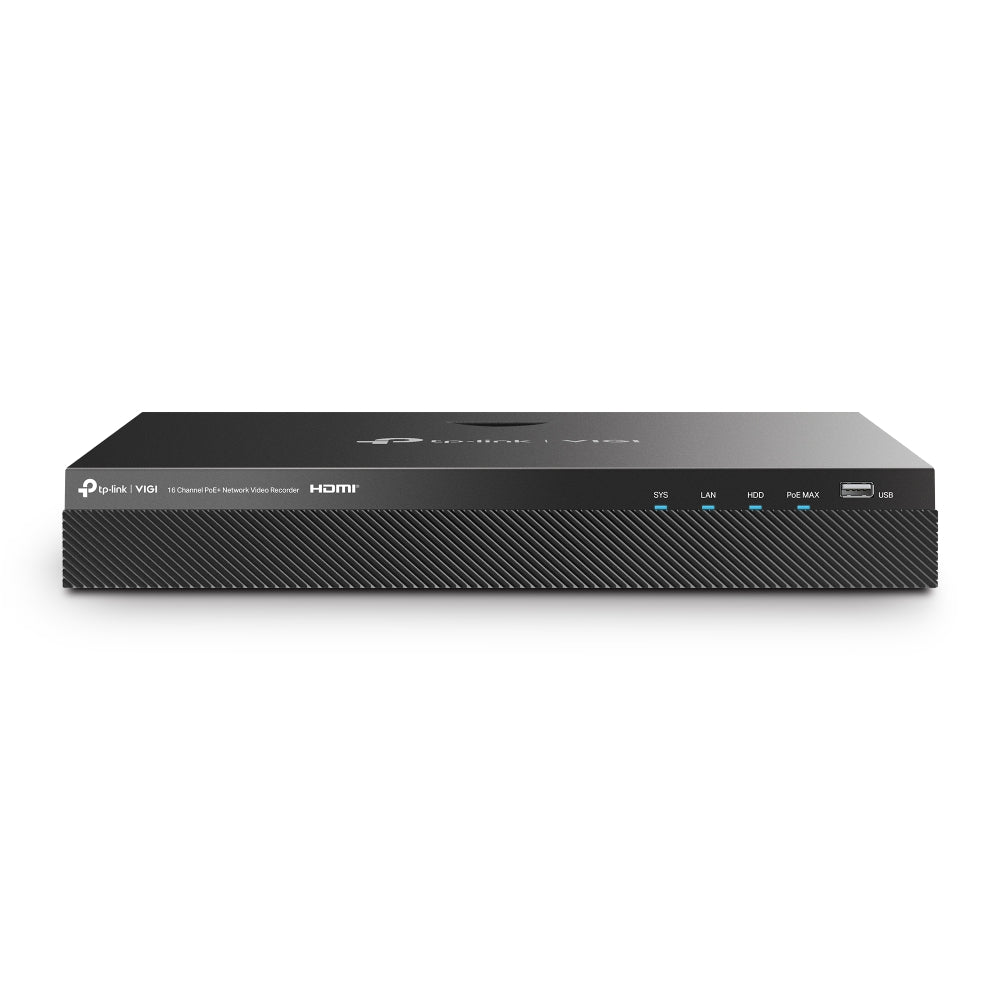

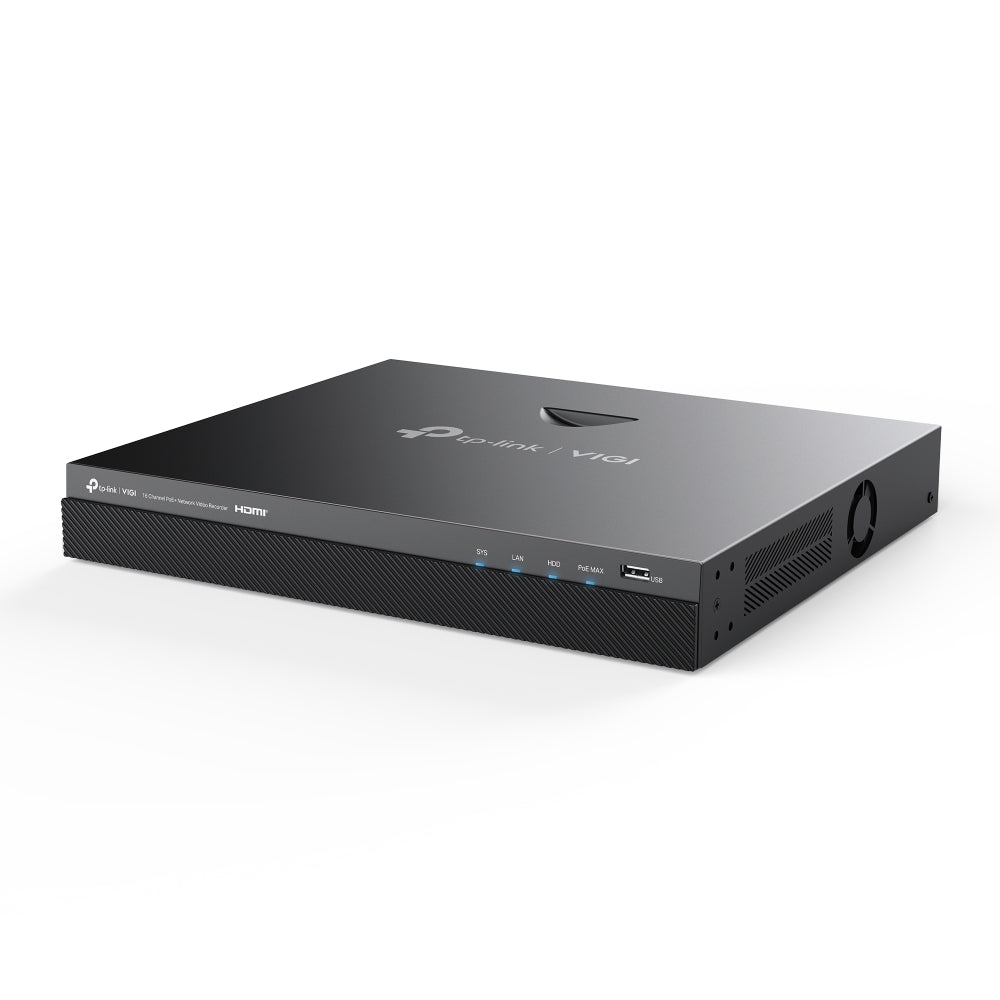

Name: tp-link VIGI NVR2016H-16P 16 Channel Network Video Recorder with 16 POE
Brand: PRO MAX VISION
Price: 399.00 AUD
Availability: InStock

tp-link VIGI NVR2016H-16P 16 Channel Network Video Recorder with 16 POE

tp-link VIGI NVR2016H-16P 16 Channel Network Video Recorder with 16 POE

VIGI 16 Channel PoE+ Network Video Recorder

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP^†decoding capacity allows you to enjoy more-channels live view and playback at the same time.
90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.^‡

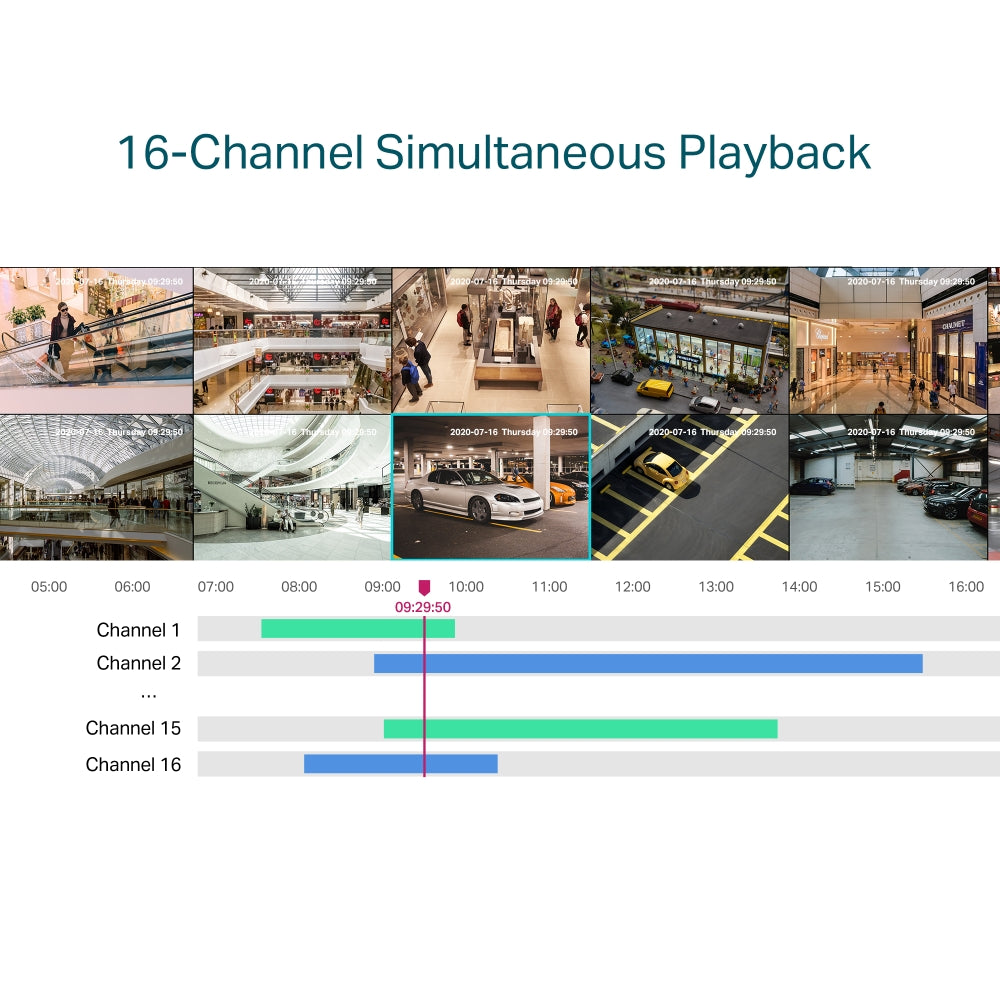

16-Channel Simultaneous Playback^*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility^△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Auto Initialise for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Specifications

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP 30fps: 4-ch @ 3MP, 2-ch @ 5MP

Record Management
Record Mode	Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode	Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

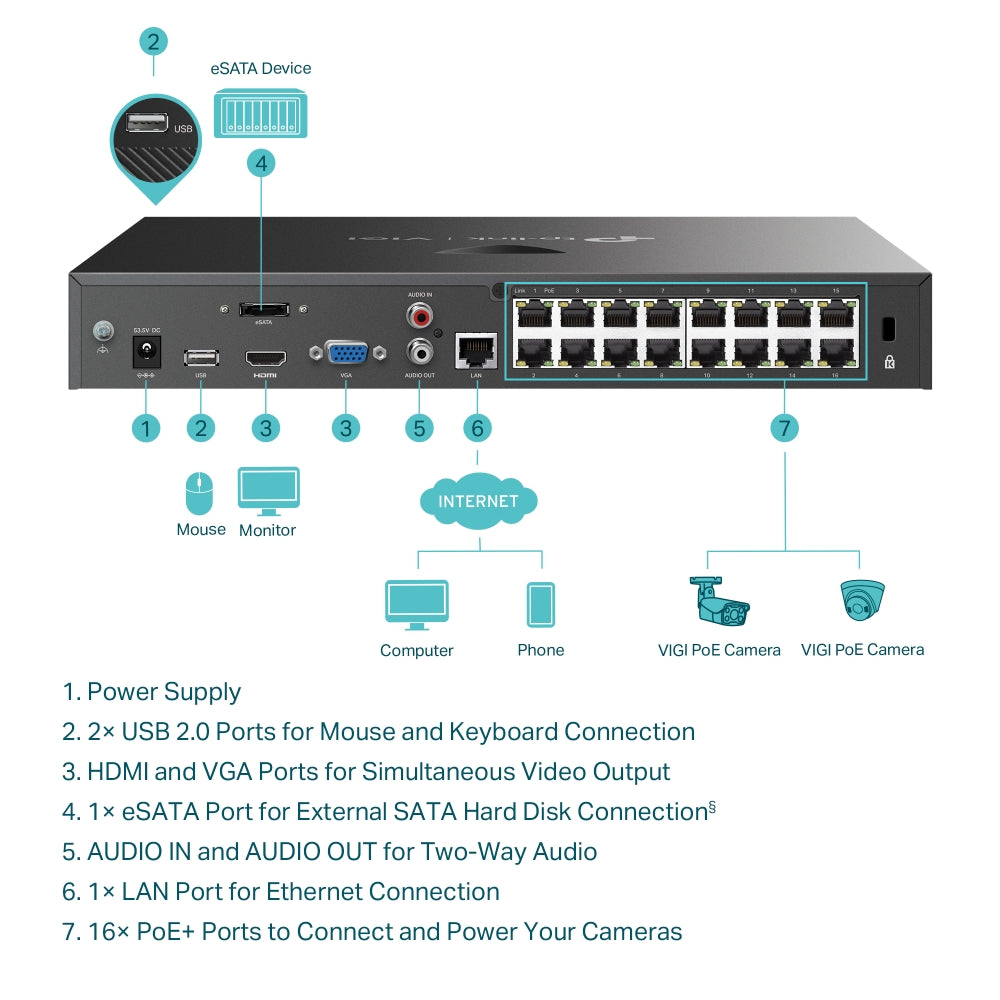

External Interface
Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1

HARD DISK
SATA	2 SATA Interfaces
Capacity	Up to 10 TB Capacity for Each HDD

PoE
Standard	802.3at/af Compliant
Interface	1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	90 W Available for All PoE+ Ports, 30 W Max per Port

Alarm
General Alarm	Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm	Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage	Recording, White Light Alarm, Buzzer, Log, Audible Alarm

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	VIGI Network Video Recorder Power Adapter Power Cables HDD Power Cables HDD Data Cables Mounting Accessories Mouse Quick Installation Guide
Working Temperature	NVR: -10–55 °C Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	330 × 285 × 45 mm
Net Weight	1.9 Kg
Gross Weight	3.2 Kg
Power Supply	53.5V DC/2.43A
Power Consumption	6.2 W (Without Disk) 40 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
