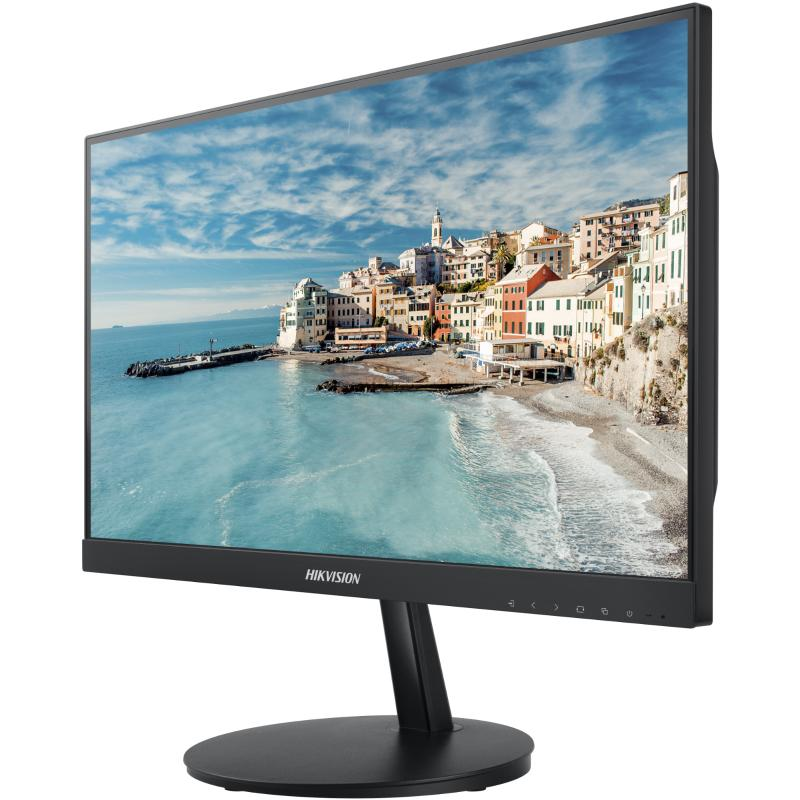

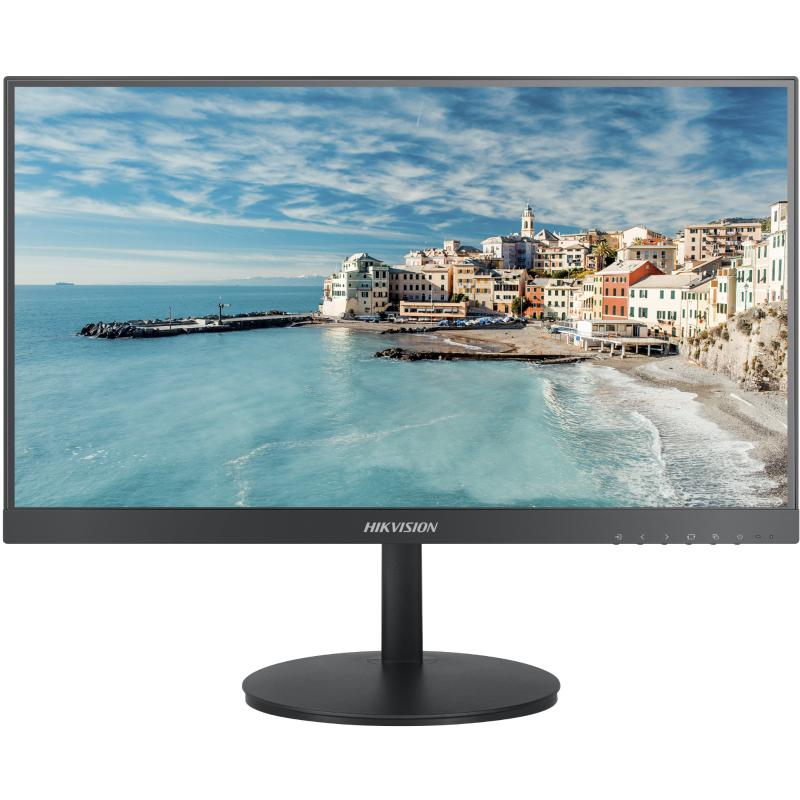

21.5 inch Hikvision LCD TV Monitor (DS-D5022F2-1V2S)

21.5 inch Hikvision LCD TV Monitor (DS-D5022F2-1V2S)

• 21.5 inch FHD 100Hz VA Monitor with Speaker

  • 100 Hz refresh rate, more fluid and life-like video
  • Ultra-thin device body with ultra-thin border for 3 sides.
  • 8 bit LVDS FHD (1920 × 1080) display.
  • Low blue light design for eye care.
  • Multiple interfaces, including VGA, HDMI, audio out, and built-in speaker.
  • Support VESA wall mount.

21.5-inch FHD Monitor | DS-D5022F2-1V2S

Specification

• • Display
  • Screen Size21.45 inch
  • Active Display Area478.656 (H) mm × 260.280 (V) mm
  • Resolution1920 × 1080
  • BacklightE-LED
  • Pixel Pitch0.241 mm (H) × 0.241 mm (V)
  • Brightness250 cd/m²
  • Viewing Angle178° (H) / 178° (V)
  • Color Depth8 bit ,16.7 M
  • Contrast Ratio4000 : 1
  • Response Time8 ms
  • Refresh RateMax. 100Hz , Typ. 60 Hz
  • HazeHaze 25%, 3H
  • Reliability7 × 24 H
  • Color Gamut72% NTSC
  • Interface
  • Video & Audio InputHDMI 1.4 × 1, VGA × 1，Audio In × 1
  • Video & Audio OutputSpeaker × 2 ( 4Ω 2W)
  • Data Transmission InterfaceNone
  • Control InterfaceNone
  • Power
  • Power SupplyDC 12V, 2.0A
  • Power Consumption≤ 24 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20% to 90% RH (Non-Condensing)
  • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
  • Storage Humidity10% to 90% RH (Non-Condensing)
  • General
  • Casing MaterialPlastic
  • VESA75 mm × 75 mm (4 - M4 × 6 mm)
  • Bezel Width2.38 mm (top/left/right), 21.55 mm (bottom)
  • Product Dimensions (W × H × D)

    With base: 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm

    Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm

  • Package Dimensions (W × H × D)599 (W) mm × 393 (H) mm × 109 (D) mm
  • Net Weight2.0 ± 0.5 kg
  • Gross Weight3.2 ± 0.5 kg
  • Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
  • Remarks

    The base is included by default.

    The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
