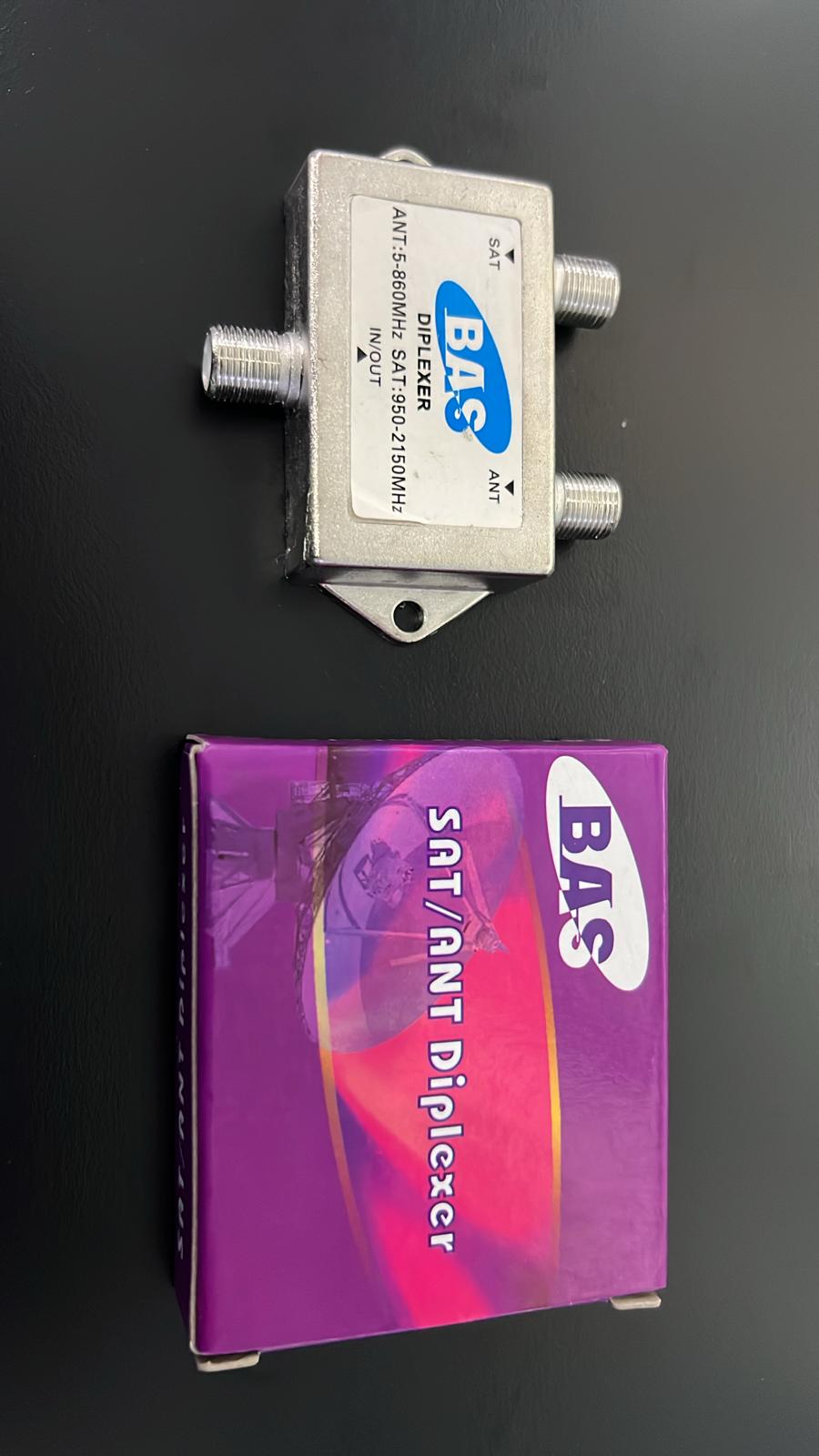

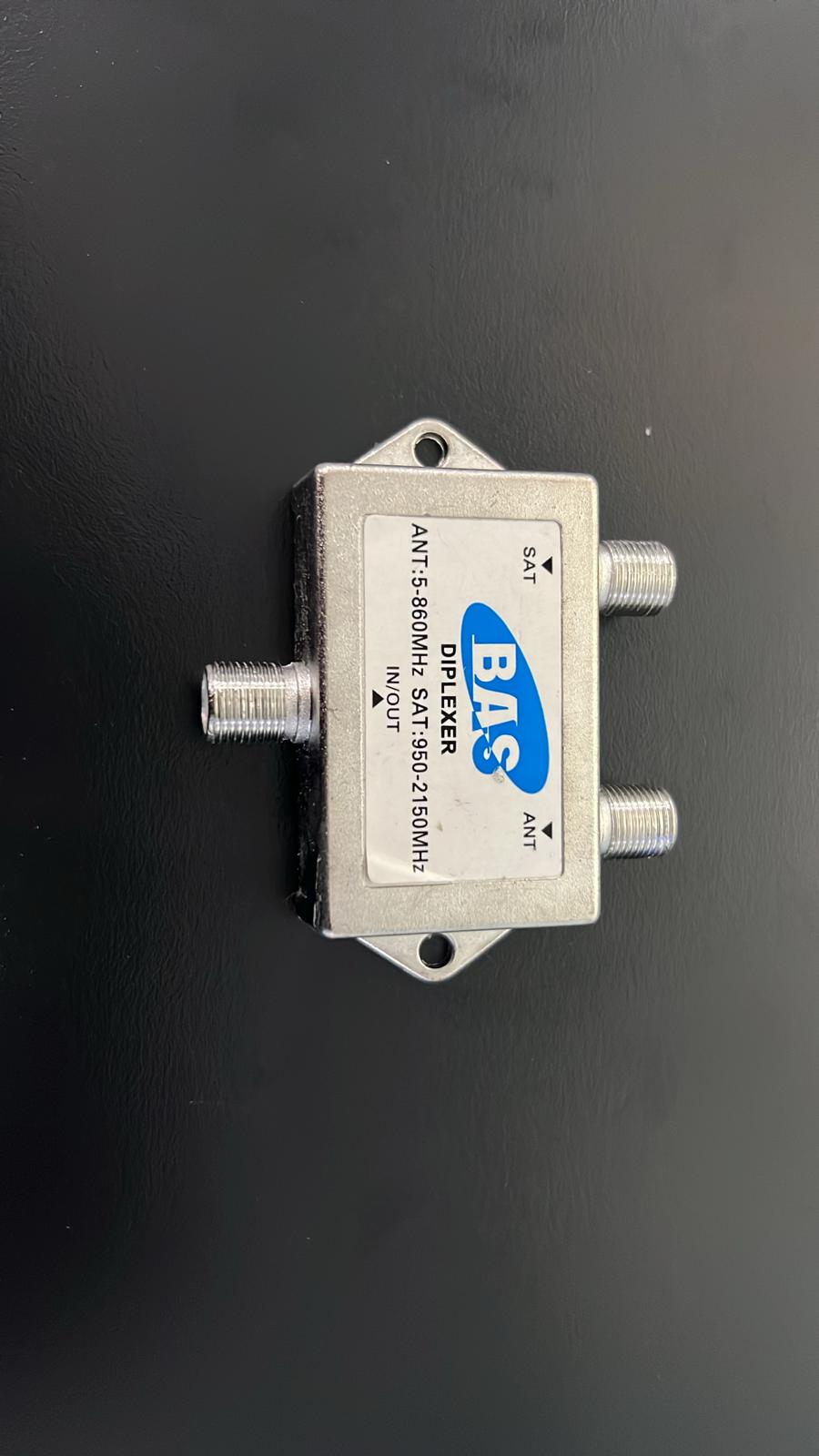

SAT/ANT Diplexer 10-3224MHz Cable And Satellite TV Signal Hybrid Splitter

Description:

Specification:

Features:

• Zinc die-cast housing,tin-plated
• Light weight and compact size
• Frequency range:5-2150MHz
• F-female connector 75Ohm
• DC power passing: 24VDC 500mA (MAX.)
• 1 In / 2 out of satellite separation and RF signals
• Zinc housing, tin plating
• Light weight and compact size

Specifications:

IN-ANT

• Frequency Range(MHz): 5-862, 950-2400
• Insertion Loss(dB): ≤20.0, ≥20.0
• Return Loss(dB): ≥10.0

IN-SAT

• Frequency Range(MHz): 5-862, 950-2150
• Insertion Loss(dB): ≥20.0, ≤3.0
• Return Loss(dB): ≥10.0
