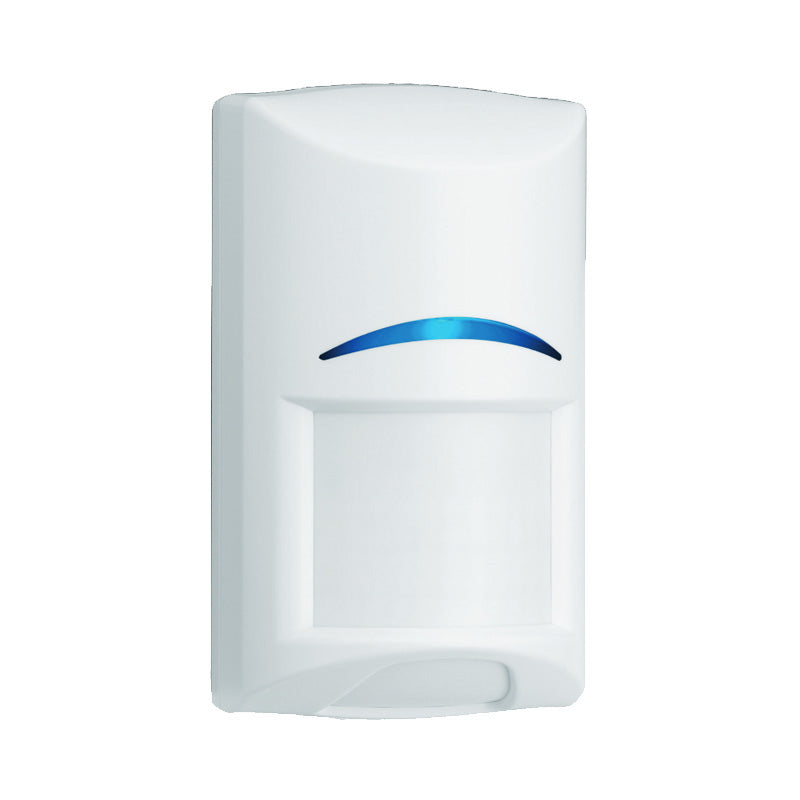

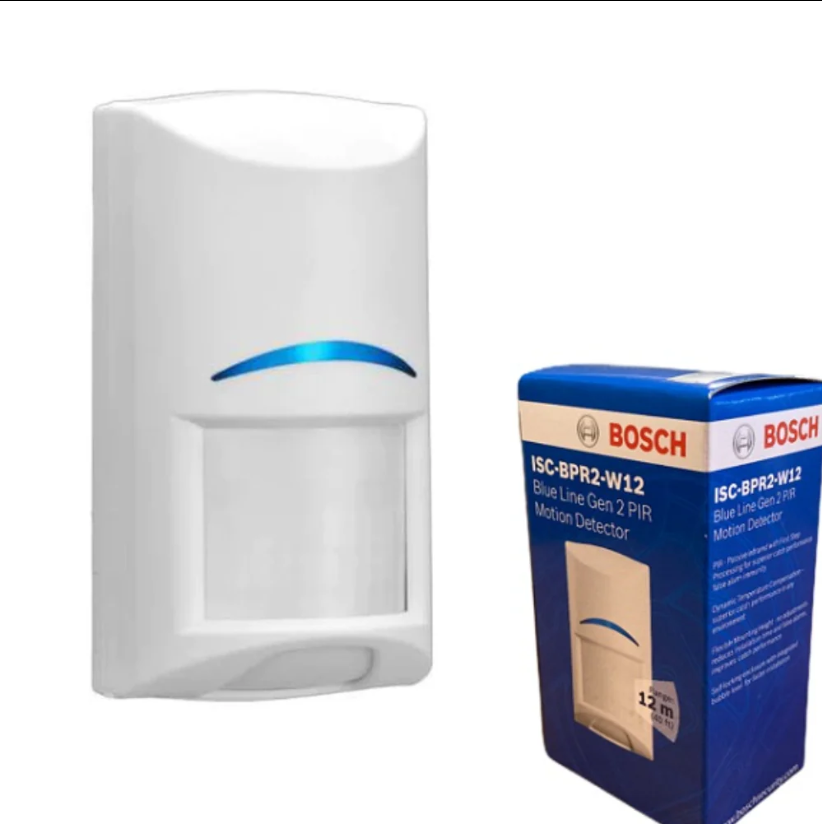

Bosch Blue Line PIR Detector 12m BPR2-W12
- Wall to Wall coverage – Superior catch performance within 12 m x 12 m coverage area
- Dynamic Temperature Compensation – superior catch performance in any environment
- Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance

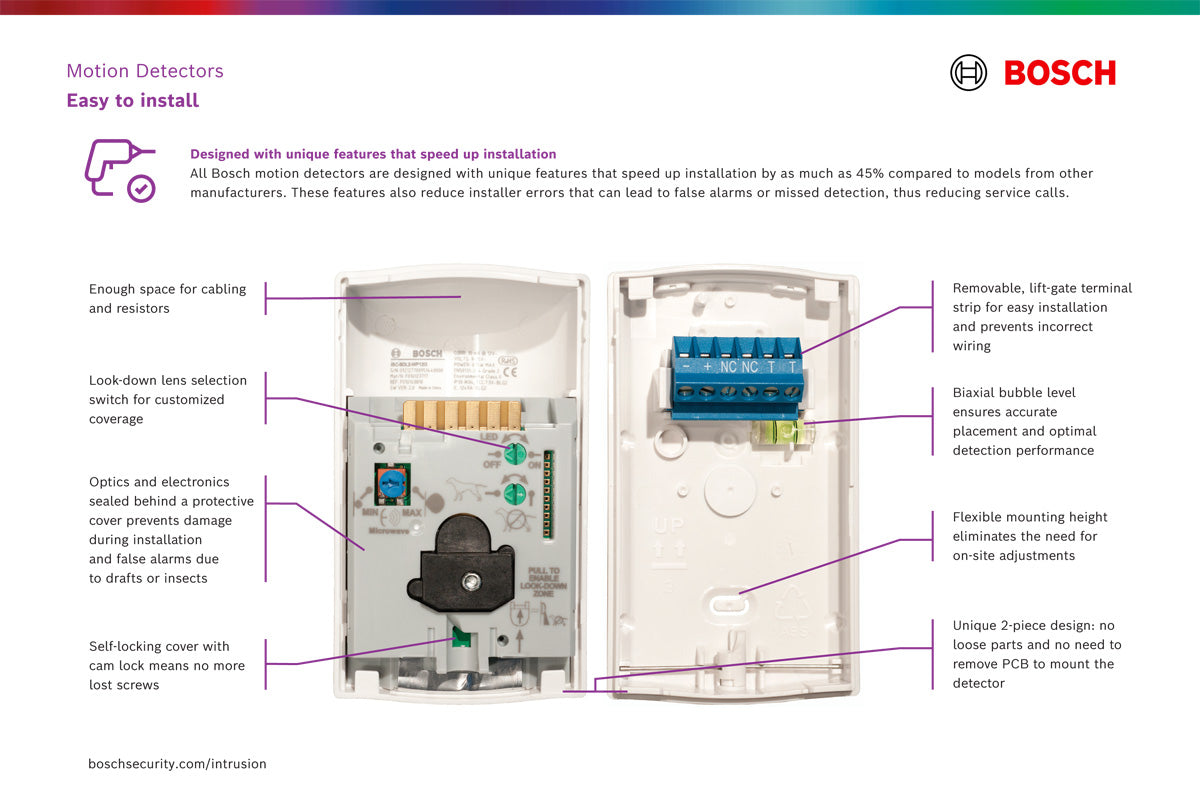

- Self-locking Enclosure with Integrated Bubble Level – reduce installation time
Description
The Blue Line Gen2 PIR Motion Detectors use two Fresnel lenses designed to produce sharply-focused images throughout the field of view providing superior response to intruders. These lenses provide a
high density (77 zone) 7‑layer pattern, and the selectable lookdown lens provides an additional three
lookdown zones. Easy installation and flexible mounting options provide state-of-the-art detection.
Mounting
The recommended mounting height is 2.2 m to 2.75 m (7.5 ft to 9 ft) with no adjustments required. Mount the motion detector level, both horizontally and vertically.
Mounting options:
• On a flat wall (surface, semi-flush), with the optional
B335-3 Swiveling low-profile mount, or with the
optional B328 Gimbal-mount Bracket
• In a corner (the junction of two perpendicular walls)
• On the ceiling with the optional B338 Universal
Ceiling-mount Bracket
Technical specifications
Electrical
Current (standby/alarm): 10 mA at 12 VDC
Voltage (operating): 9 VDC to 15 VDC
Environmental
Environment Complies with EN50130-5 Class II
Relative Humidity: 0 to 95%, non-condensing
For UL Listed product installations, 0 to 85%, non-condensing
Temperature (operating): -30°C to +55°C (-20°F to +130°F)
For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
Mechanical
Color: white
Dimensions: 105 mm x 61 mm x 44 mm
(4.2 in. x 2.4 in. x 1.7 in.)
Material: High-impact ABS plastic
Radio Frequency
Interference (RFI) Immunity
No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.
Outputs
Relay: Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper: Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W
Connect tamper circuit to 24-hour protection circuit
