Description

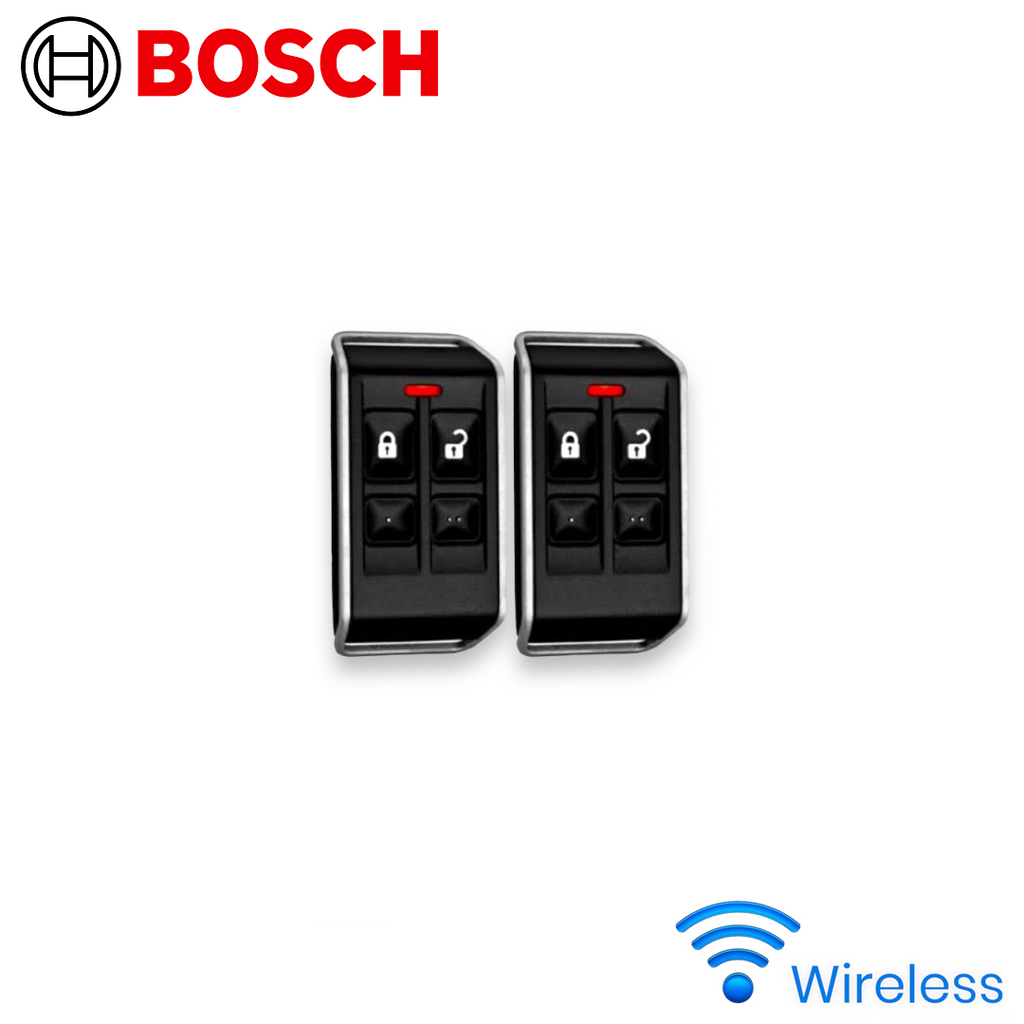

Bosch Radion Wireless 4 Button Keyfob | RFKF-FBS
- Water and dust resistant
- Encrypted.
- Arm, disarm and panic, stay and aux functions
- Assigned by user for accurate reporting of open close signals
- LED indicator
- Programmable aux buttons (depending on panel type
- Available from Cheap Alarm Parts
Description
The Blurb:
Radion keyfobs allow you to arm or disarm the security system or send a panic alarm. Programmed with a unique code, each model works exclusively with your compatible security system. Two option buttons are user-defined to perform additional functions (depending on your panel type).
Specifications:
| Dimensions: | 63.7 mm x 35.5 mm x 13.0 mm(2.51 in x 1.40 in x 0.51 in) |
| Power/Voltage: | One CR2032 Lithium battery, 3 VDC |
| Battery Life: | Up to 5 years |
| Temperature: | Functional range: -10ﾟC to +49ﾟ(+14ﾟF to +120ﾟF)UL only: 0ﾟC to +49ﾟC (+32ﾟF to+120ﾟF)EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF |
| Environment: | Complies with EN50130-5 Class II |
| Relative Humidity: | Up to 93% non-condensing |
| Frequency: | 433.42 MHz |
| Use: | Intended for indoor use. |
| Receivers: | B810 (compatible with RFKF-FB-A, and RFKF-TB-A only)RFRC-OPT (compatible with RFKF-FB and RFKF-TB only) |
Compatibility Receiver and Firmware Version:
- B810 Receiver V2.01 or higher.
- RFRC-STR Receiver V1.5 or higher.
- RFRC-OPT/RFRC-OPT-CHI Receiver V1.3 or higher.
- Solution 3000
- Solution 6000
NOT Compatible with:
- DSRF RF3212E Receiver
This older receiver is found on many older panels such as the 880, Solution 64, Solution 16i
How to program:
Solution 880, 862, 3000 icon series panels:
Program the new module as follows, if you already have existing key-fobs, make sure you don’t program these new fobs into existing user numbers, otherwise your old fobs will not work. You can use memory locations 9 -15 for keyfobs. If you are not sure, it’s best to add the new remote’s to User 11 or User 12.
Solution 3000 Text & Touch screen series panels:
Solution 16i, 16Plus, 144, 6000 series panels:
