Bosch Wireless Remote Key Kit | WE800EV2 RF Arming Kit
- Key fob kit for your Bosch 2000 and 3000
- ON/OFF functionality for Solution 16 panels
- Code hopping RF security (4.2 billion combinations)
- Simple installation
- Superheterodyne receiver (less interference)
- Robust attractive key fobs
- 2 onboard programmable relays
Description
Use this kit to add key fobs for your Bosch 2000 and 3000
The WE800EV2KIT RF Arming Kit is designed to provide a convenient one button ON/OFF control for the Bosch 2000 and 3000 alarm panels. Provision is also made for the control of up to two (2) external devices via on board relays (operate your garage door for example, will require additional relay/setup)
Maximum Fob Storage = 21 key fobs can be linked/stored

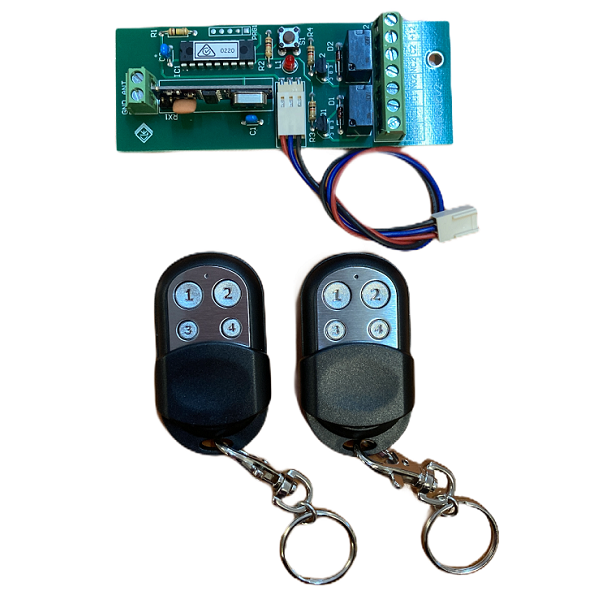

Parts included:
2 x 4 button key fobs with sliding cover
1 x Wireless 433mHz receiver
Specification
Receiver
Operating Voltage: 9 – 15 VDC
Current Consumption: 7mA Standby 45mA Both relays operating
Relay Rating: SPDT 1Amp maximum carry @ 12VDC
Reverse Polarity Protection: No
Operating Frequency: 433.92mHz
Receiver Type: Superheterodyne AM ASK
Bandwidth: 250khz
Antenna: 170mm formed piano wire
Fob Storage: EEPROM Maximum 21 fobs
Transmitter (Fob)
Operating Voltage: 12VDC Battery 27A
Operating Frequency: 433.92mHz
Bandwidth: 380khz
Tuning: SAW resonator locked
Channels: 4
Weight: 35g including battery
Visual Indicator: Blue LED
