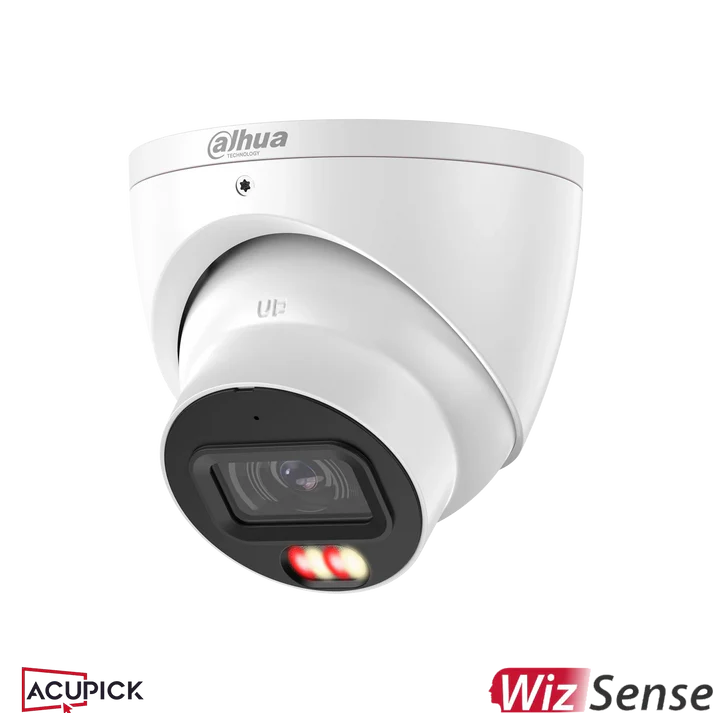

Dahua DH-IPC-HDW3867EM-S-IL-ANZ with Smart Dual Light
8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
Make the best choice have maximum security
Ideal for areas such as Erina, Gosford and Newcastle in the Central Coast, and Sydney. Enjoy peace of mind with a 3-year warranty and free shipping in our service areas.
We also offer a price match guarantee, ensuring you get the best value for your purchase.
WizSense Network Camera
>8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
DH-IPC-HDW3867EM-S-IL-ANZ_datasheet
Specification
-
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
3840 (H) × 2160 (V)
ROM
256 MB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.007 lux@F1.4 (Color, 30 IRE)
0.0007 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control
Auto;Manual
Illuminator Number
2 (Multi-core (IR + warm) light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–80°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.4
Field of View
2.8 mm: H: 110°; V: 58°; D: 132°
3.6 mm: H: 86°; V: 49°; D: 100°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.4 m (4.59 ft)
3.6 mm: 1.9 m (6.23 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
84.8 m
( 278.22 ft)
33.9 m
( 111.22 ft)
17.0 m
( 55.77 ft)
8.5 m
( 27.89 ft)
3.6 mm
98.7 m
( 323.82 ft)
39.5 m
( 129.59 ft)
19.7 m
( 64.63 ft)
9.9 m
( 32.48 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD
SMD 4.0
AcuPick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 3840 × 2160@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
3 streams
Resolution
8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
VBR;CBR;ABR
Video Bit Rate
H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto/Manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Smart Dual Light
Yes
Defog
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
8 areas
LDC
Yes
Audio
Built-in MIC
Yes, built-in Mic
Audio Compression
PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection SMD; security exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability
ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser
IE: IE11;
Chrome;
Firefox
Management Software
Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client
iOS;Android
Cyber Security
Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply
12 VDC/PoE (802.3af)
Dual Power Backup
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption
Basic: 3.7 W (12 VDC); 5.3 W (PoE);
Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
≤95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
≤95% (RH), non-condensing
Protection
IP67
Structure
Casing Material
Metal
Product Dimensions
105.5 mm × Φ122.0 mm (4.16" × Φ4.80")
Net Weight
0.53 kg (1.17 lb)
Gross Weight
0.71 kg (1.57 lb)
