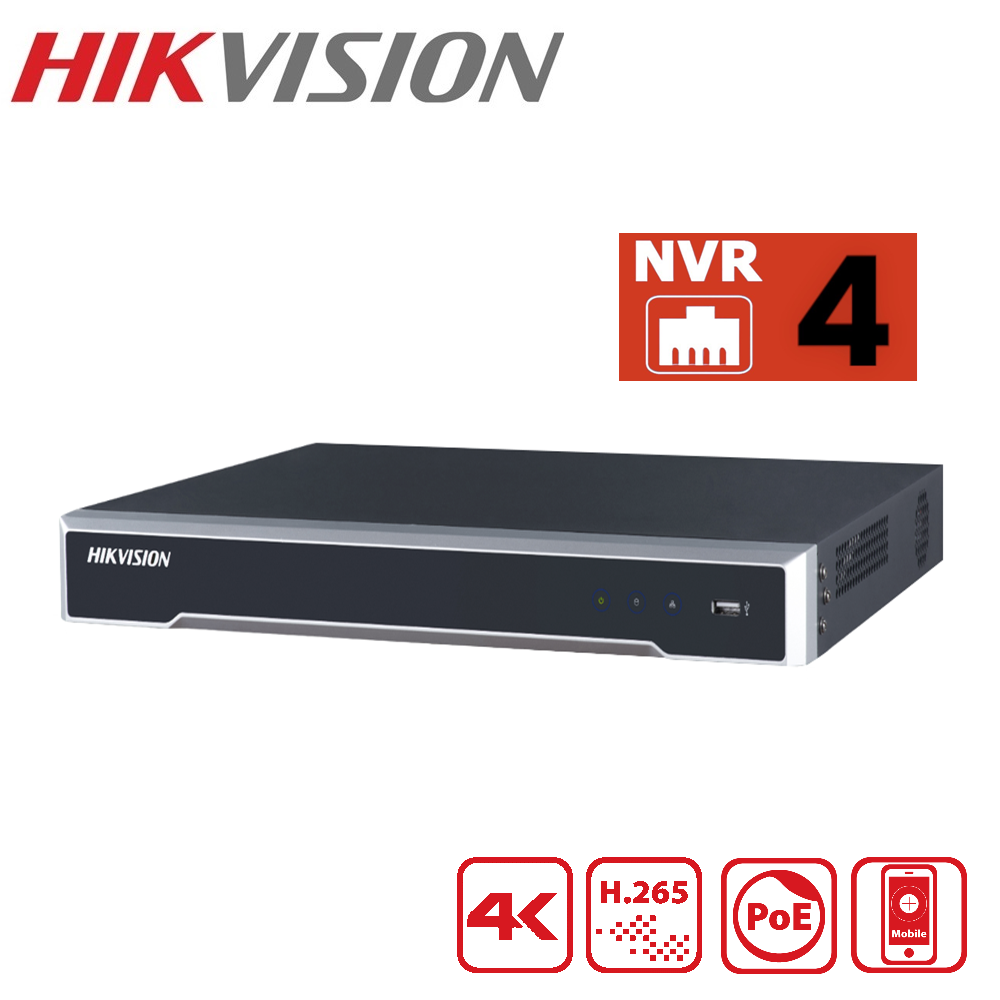

Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P(STD)/AUS (Copy)
Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P(STD)/AUS (Copy)

Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P(STD)/AUS (Copy)

Save 5%

ex. GST

Price:
$329.00 $346.00

Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P(STD)/AUS

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 4-ch IP camera inputs
  • 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)
  • 4-ch synchronous playback at up to 8MP resolution
  •

4-ch 1U 4 PoE 4K NVR | DS-7604NI-I1/4P

Specification

  • Video And Audio

  • IP Video Input4-ch Up to 12 MP resolution
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Incoming Bandwidth40 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

  • Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
  • Synchronous Playback4-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF

  • Network

  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • PoE

  • Interface4 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

  • Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each HDD
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1

  • General

  • Power Supply48 VDC, 1.8 A
  • Consumption≤ 15 W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight≤ 1.18 Kg (2.6 lb)



Warranty Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P

PRO MAX VISION guarantees that goods will be of acceptable quality, meaning they will be fit for their intended purpose, have no defects, be safe and durable.

All new products sold by PRO MAX VISION are covered by a 24 month warranty or the manufacturers warranty whichever is the greater.

PRO MAX VISION will accept returns under warranty for repair or replacement where the product is found to be defective/faulty, not fit for its intended purpose, does not match the specification or description or the part was incorrectly supplied.

Our warranty is limited to the replacement of faulty items or parts and does not include the labour costs for installing the purchased item, nor does it include damage due to incorrect fitting of parts or accessories.

Download

Data Sheet Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P
Quick Start Guide  Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P
User Manual  Hikvision 4K NVR 4 Channels | DS-7604NI-I1/4P
