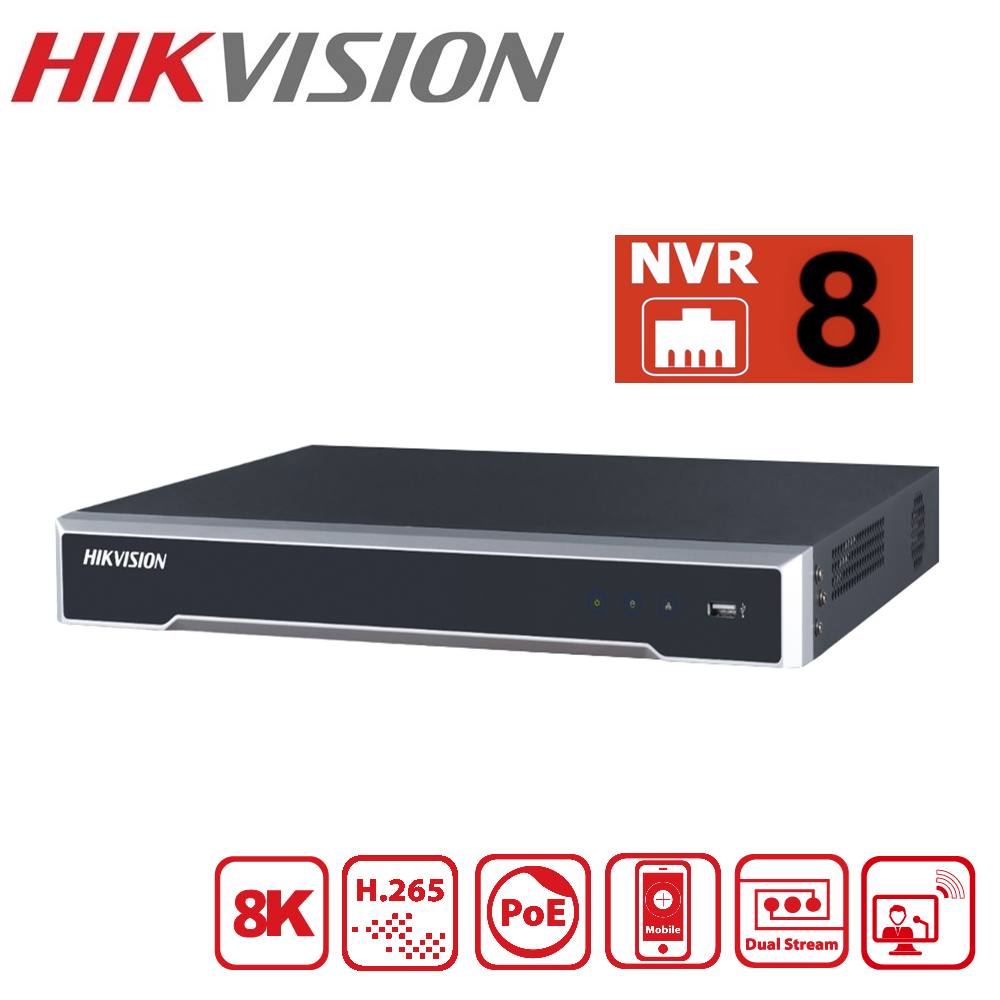

Name: Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P(STD)/AU/PLUG
Brand: PRO MAX VISION
Price: 847.00 AUD
Availability: InStock

Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P(STD)/AU/PLUG

H.265+/H.265/H.264+/H.264 video formats
Up to 8-ch IP camera inputs
Up to 8-ch@8 MP decoding capacity
Up to 128 Mbps incoming bandwidth

8-ch 1U 8 PoE 8K NVR | DS-7608NI-M2/8P

Specification

Video And Audio
IP Video Input
8-ch

Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth128 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output1920 × 1080/60Hz
Video Output ModeHDMI/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
Dual-Stream RecordingSupport
Decoding FormatH.265+/H.265/H.264+/H.264
Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Synchronous Playback8-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 120 W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA2 SATA interfaces
CapacityUp to 16 TB capacity for each HDD
Alarm In/Out4/1
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 15 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight≤ 3 kg (without HDD, 2.2 lb.)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Warranty Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P

PRO MAX VISION guarantees that goods will be of acceptable quality, meaning they will be fit for their intended purpose, have no defects, be safe and durable.

All new products sold by PRO MAX VISION are covered by a 24 month warranty or the manufacturers warranty whichever is the greater.

PRO MAX VISION will accept returns under warranty for repair or replacement where the product is found to be defective/faulty, not fit for its intended purpose, does not match the specification or description or the part was incorrectly supplied.

Our warranty is limited to the replacement of faulty items or parts and does not include the labour costs for installing the purchased item, nor does it include damage due to incorrect fitting of parts or accessories.

Download

Data Sheet Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P

Quick Start Guide Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P

User Manual Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P

Hikvision 8K NVR 8 Channels | DS-7608NI-M2/8P(STD)/AU/PLUG

Description
