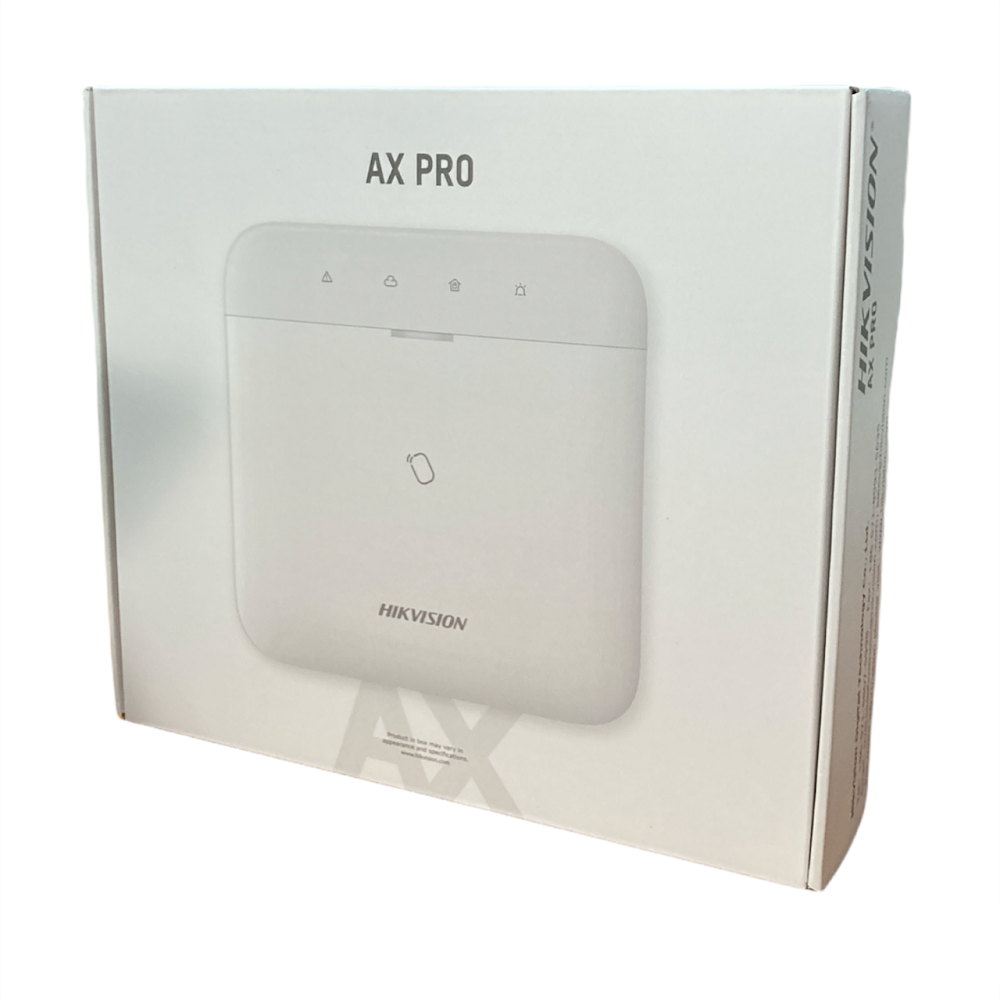

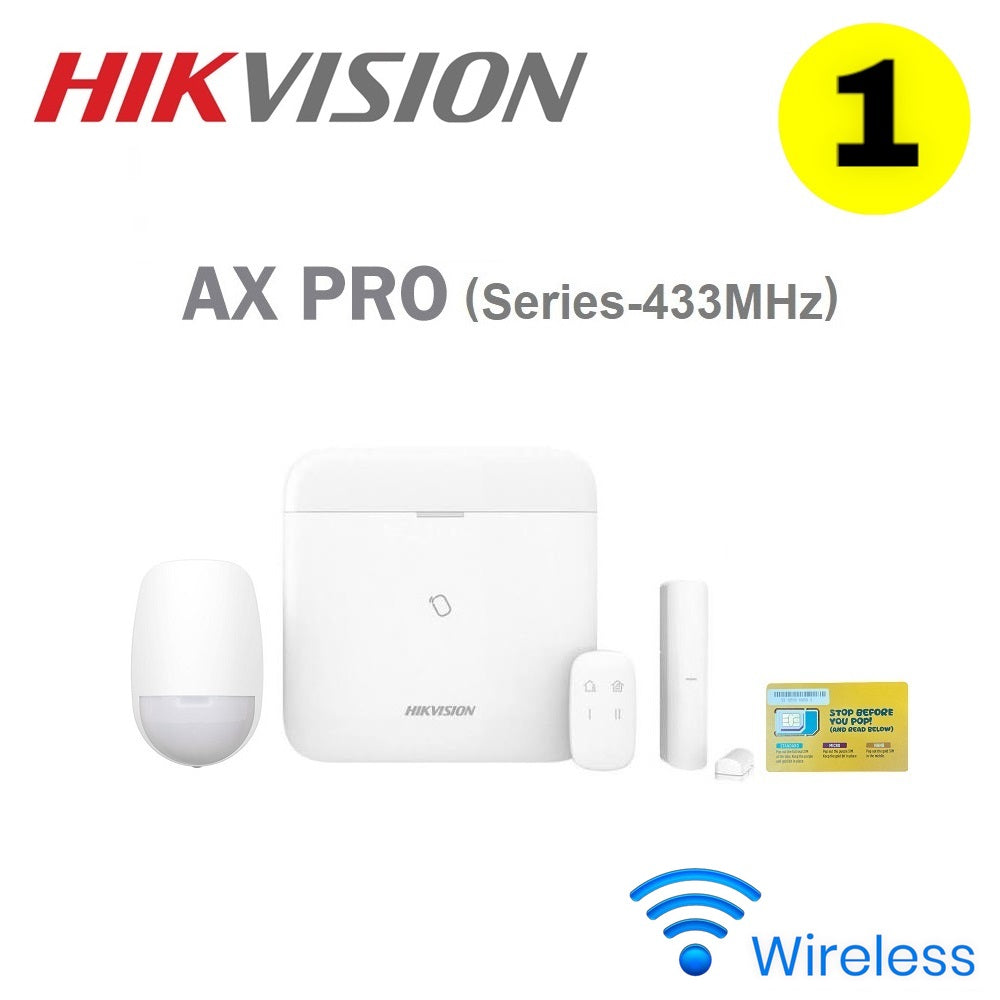

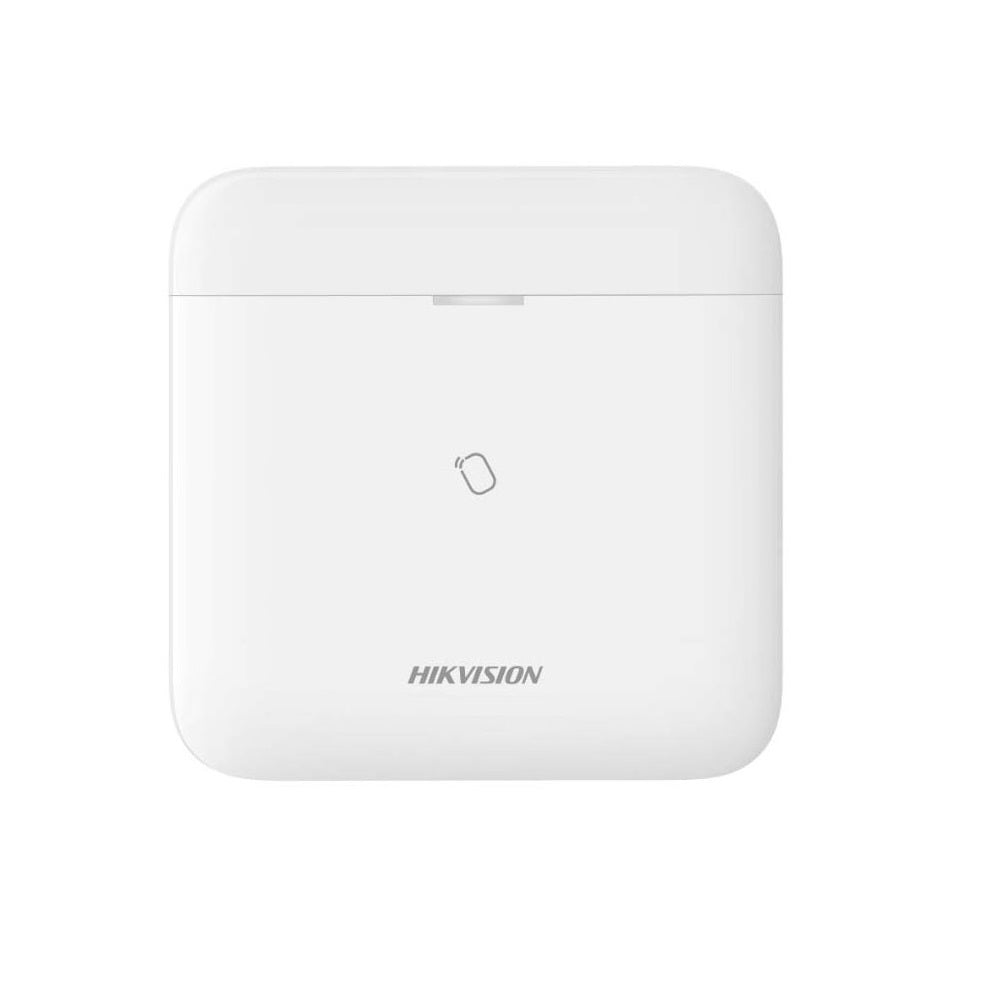

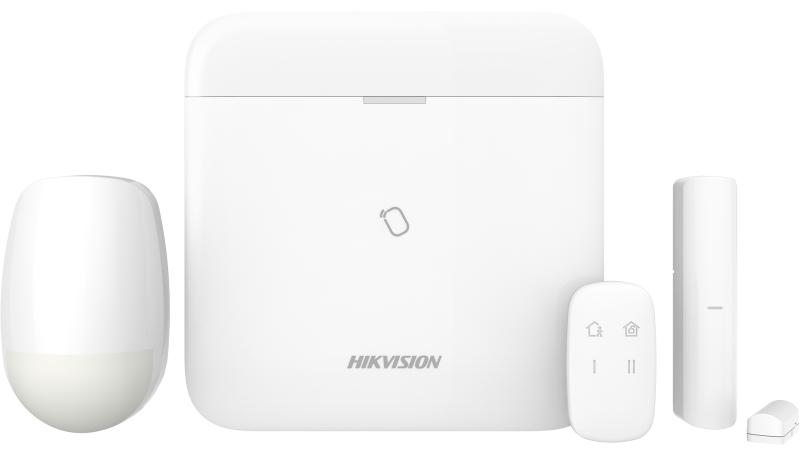

Hikvision AX PRO Series-Wireless Alarm Package Set#1 (DS-PWA96-Kit-WB)

AX PRO Kit (433MHz) | DS-PWA96-Kit-WB

Specification

• Software features

• Tag48
• Area

  32



• Zones

  96 (up to 48 PIRCAMs)



• Onboard video clips

  4



• Installer1
• User

  46



• Admin1
• Voice Prompt

  Supported



• Loudspeaker built in

  Supported



• Tag reader built in

  Supported



• Memory Log stored5000
• Programming tools

  Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud



• Firmware upgrade

  APP/Web Portal



• Arm modes

  Away/Stay



• Automatic Arm/Disarm Timers

  Supported



• Forced Arming with Open Zones

  Supported



• Diagnostics via the APP or Web

  Supported



• ARC protocol

  SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

  Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

  Supports video verification and remote control

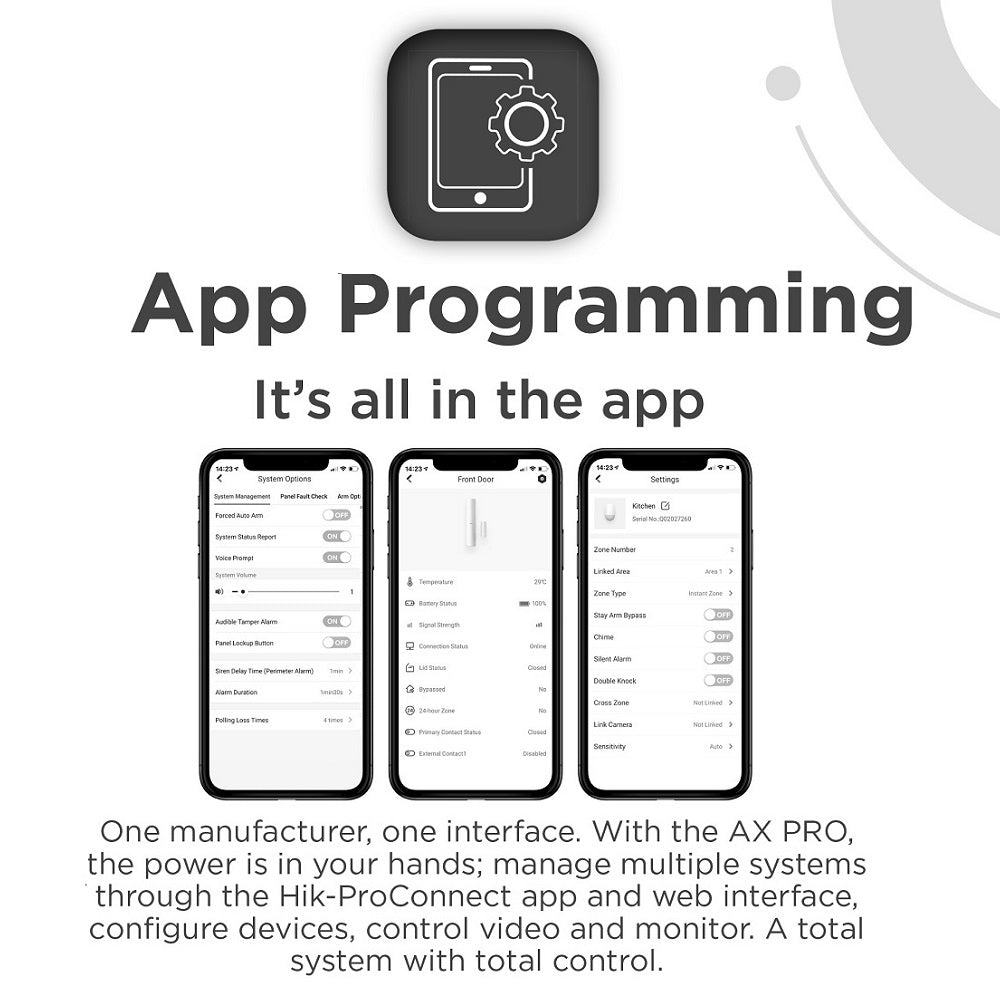

• User APP for operating

  Supported



• Installer APP for programmingSupported
• Web server for maintenance (offline configuration)Supported

• Hardware features

• RS232 output

  Supported

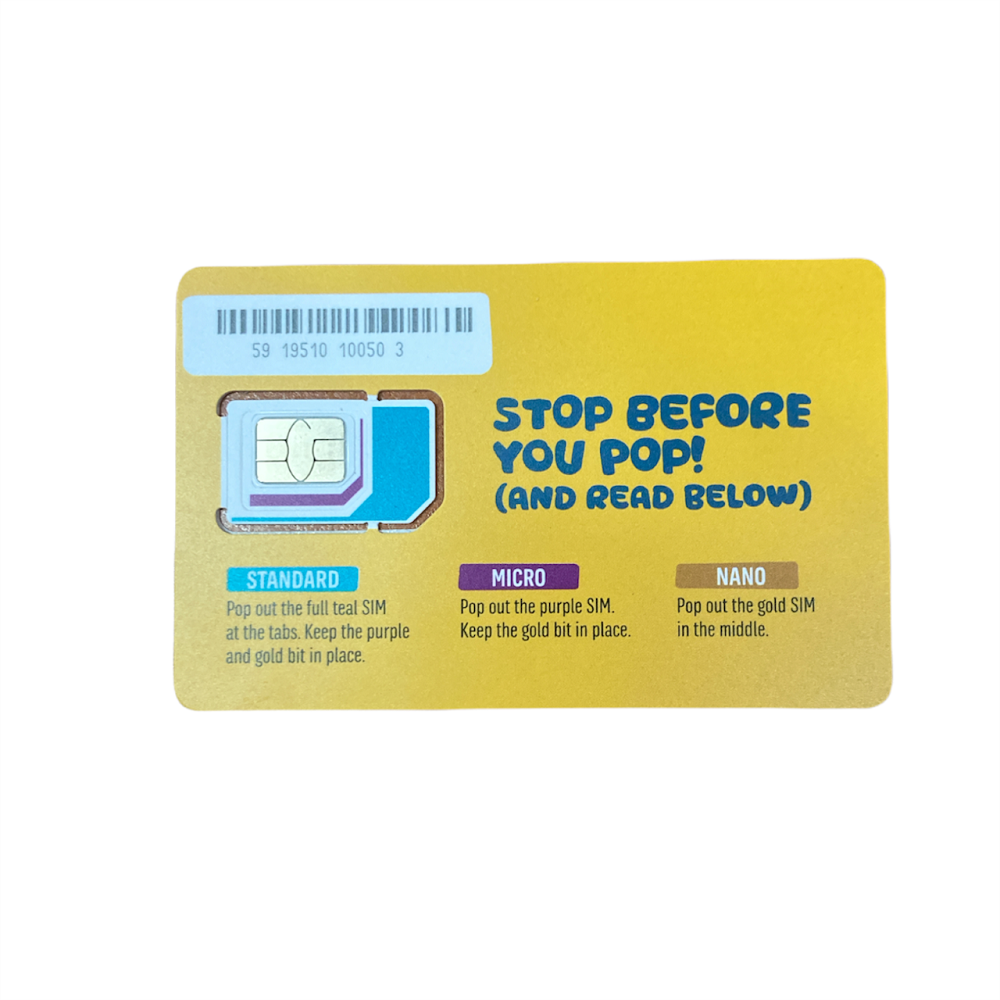

• SIM slot

  Dual



• RF transmission

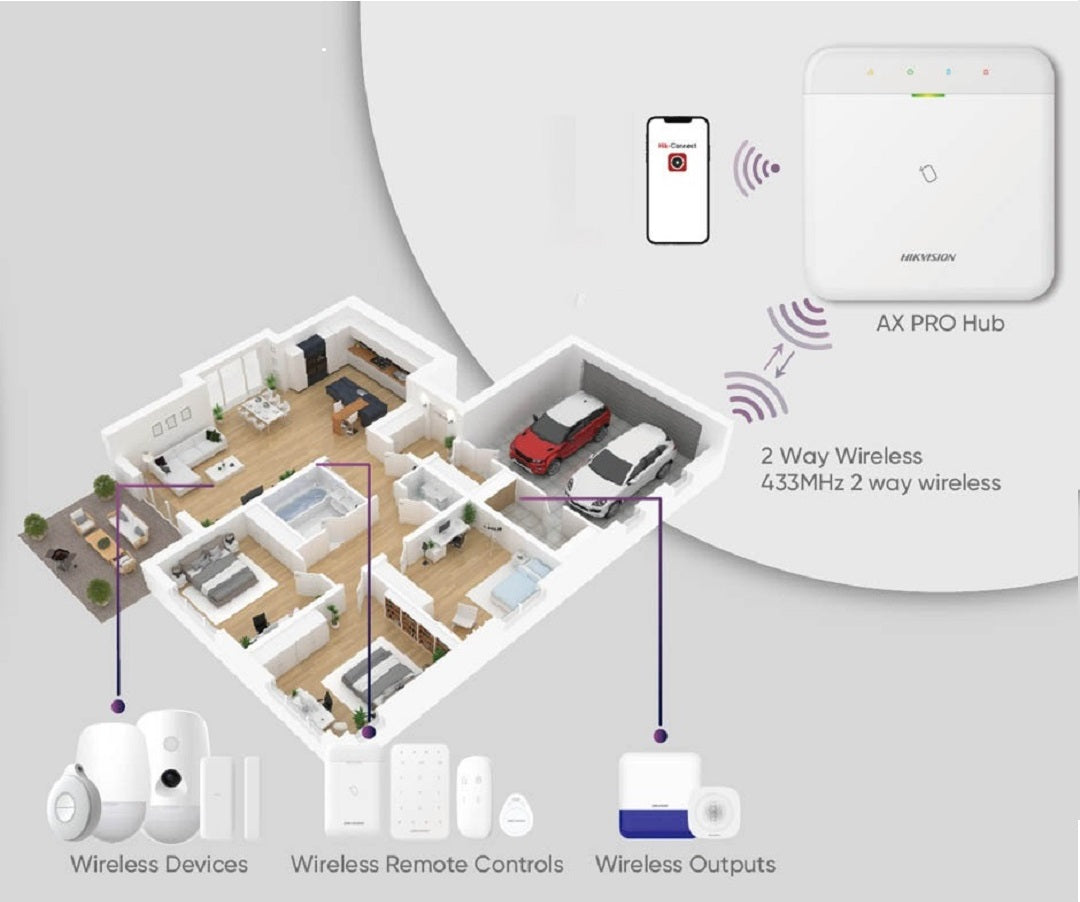

• Two-way Wireless CommunicationSupport
• RF Frequency

  433Mhz



• Wireless SecurityFrequency Hoping 128 AES Encryption
• 3/4G on board

  Supported



• Electrical characteristics

• Power supply

  Built in power supply



• Battery type

  Built in on board Battery Li



• Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

• Wireless transmission

• Wired network

  Supported



• Wi-Fi Standard

  Supported



• Display

• LEDs Status

  Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power



• General

• Operation temperature

  -10 °C to +55 °C



• Shell materialPlastic
• Dimension(WxHxD)

  170.0 mm (6.7") x 170.0 (6.7\") mm x 38.6 mm (1.5\")



• Weight

  557.5 g(19.7 oz)



• Colorwhite

• Device management

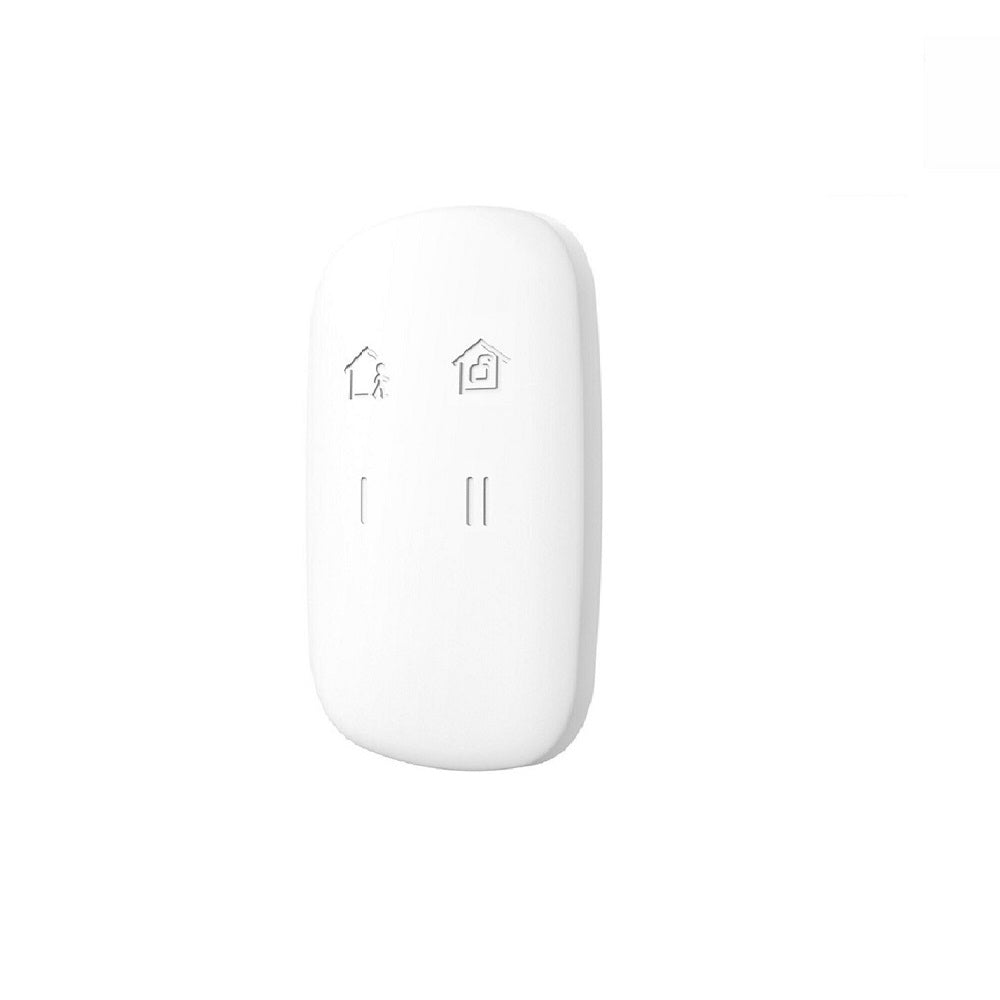

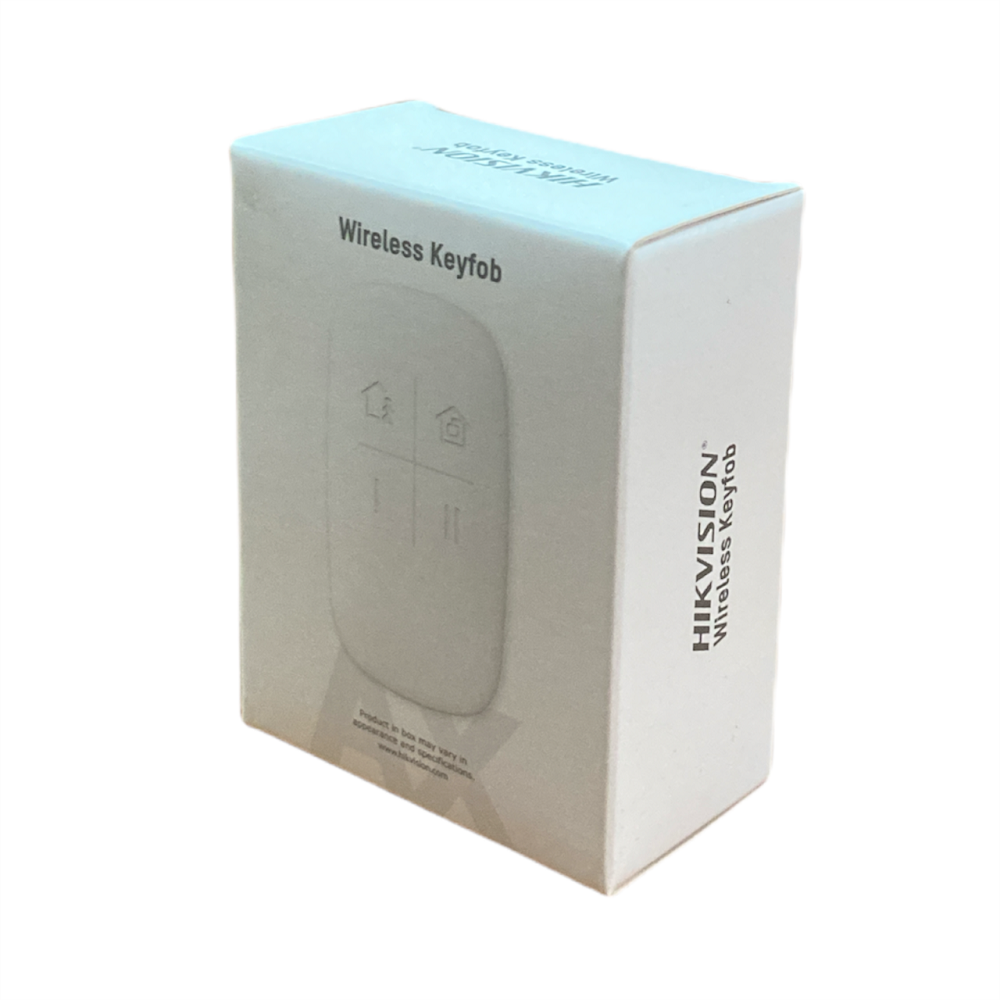

• Keyfob

  48

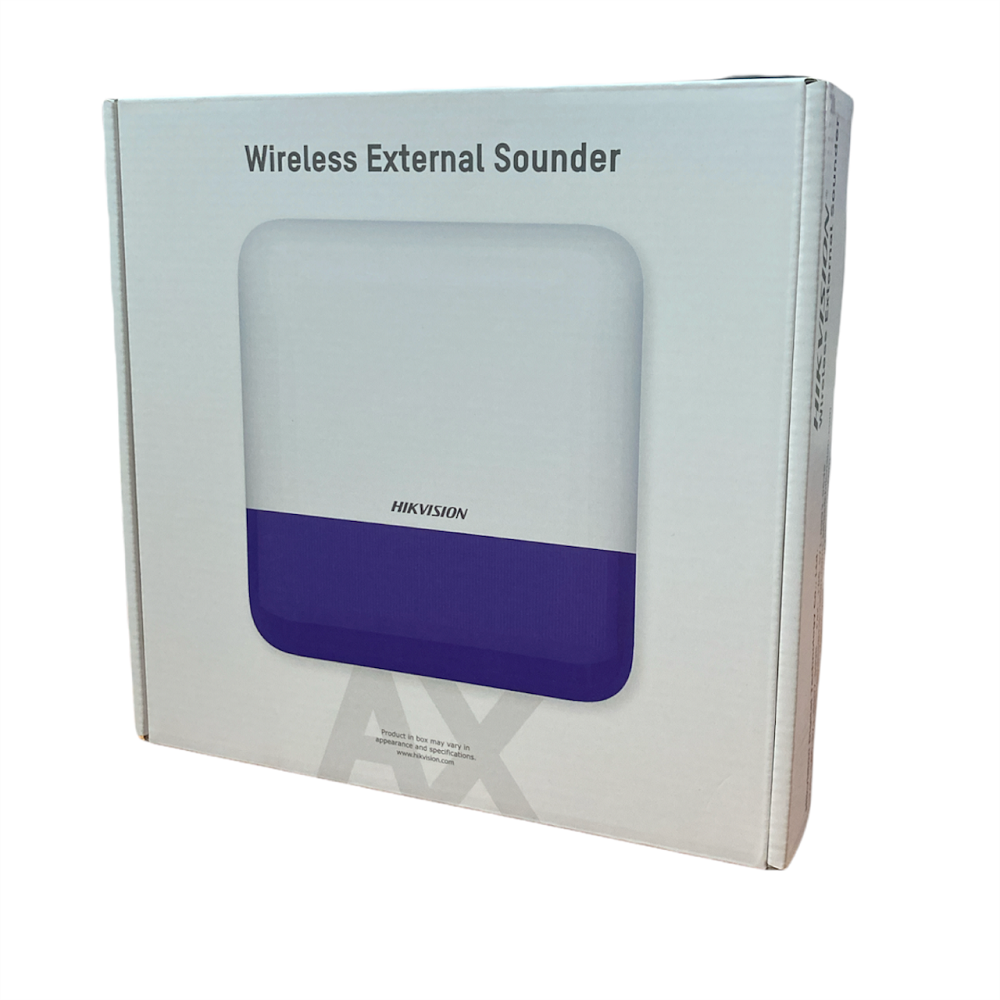

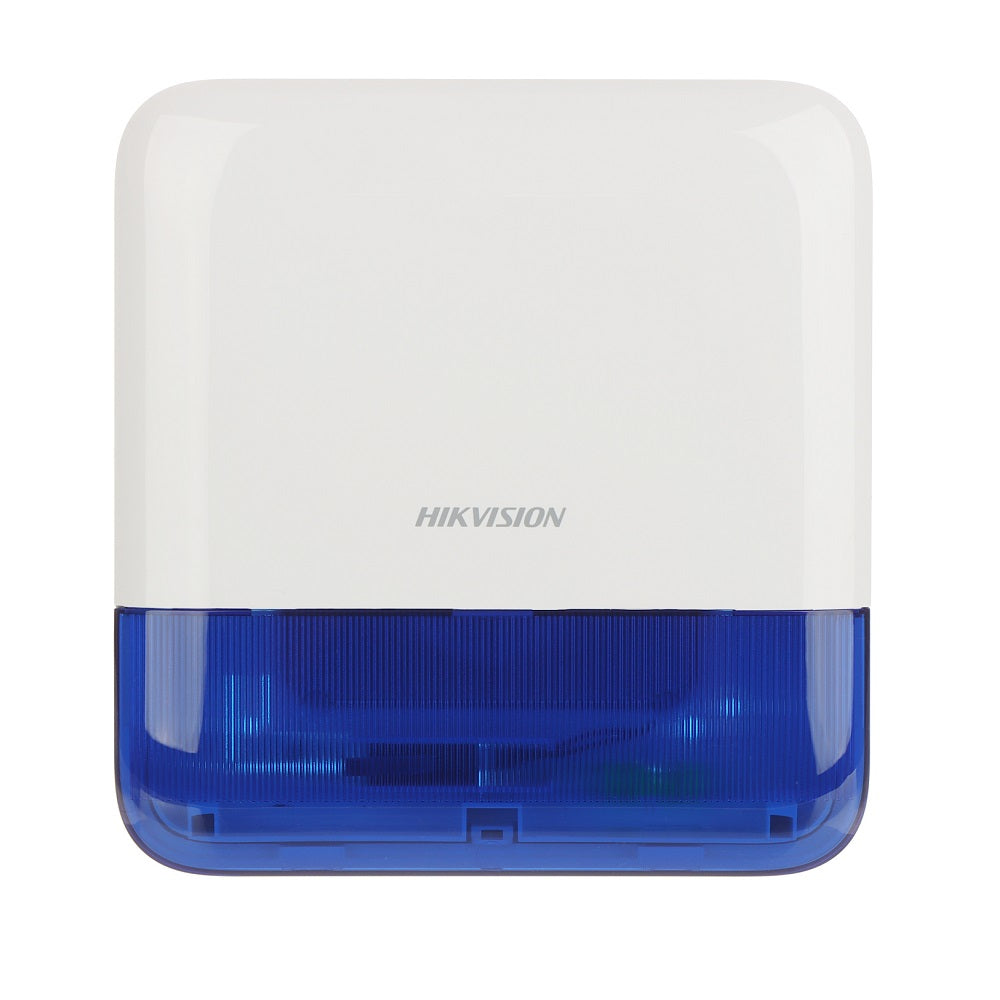

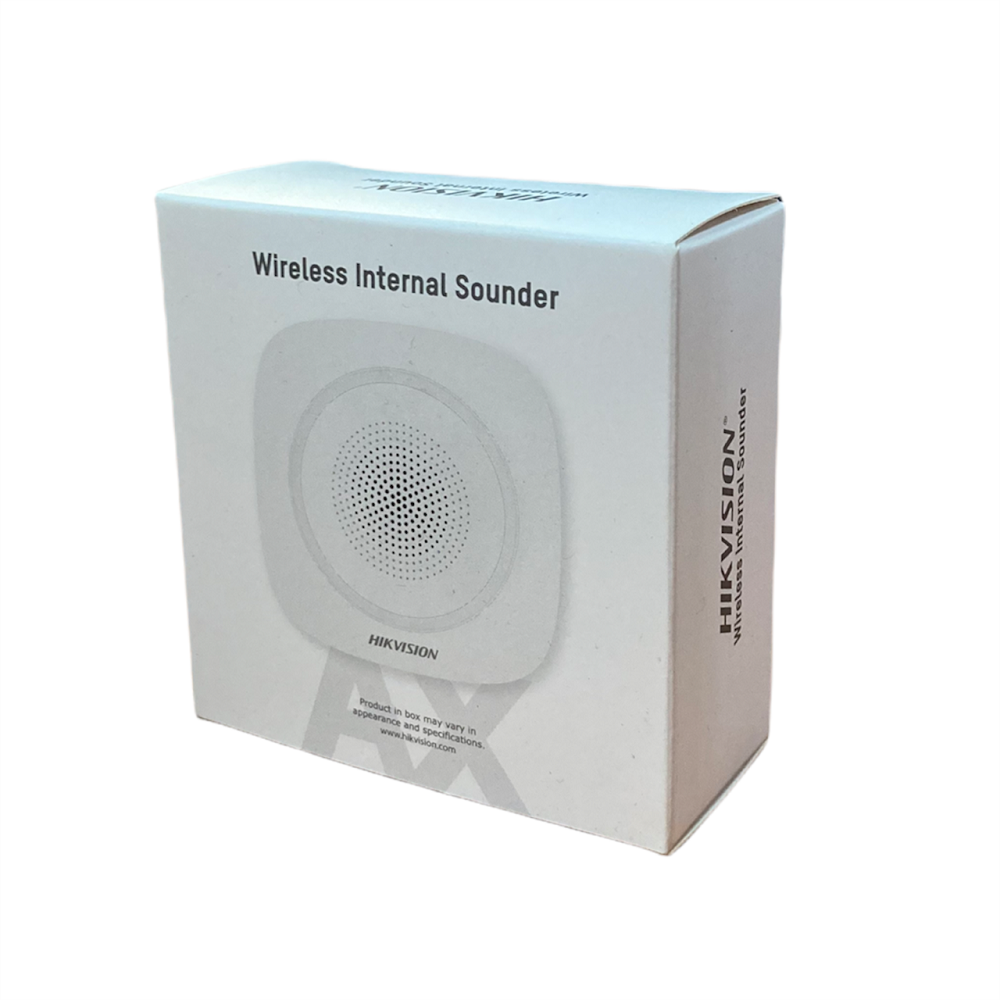

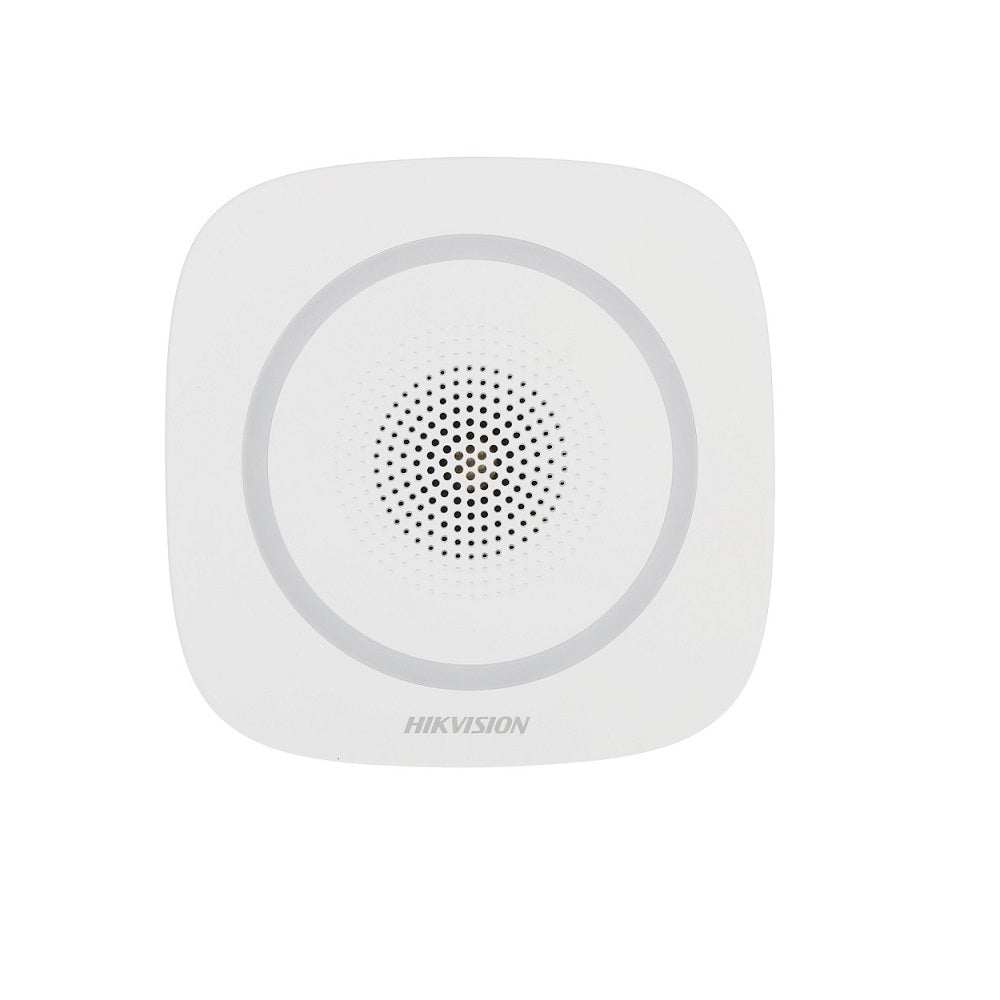

• Wireless sounder6 (3 internal+3 External)

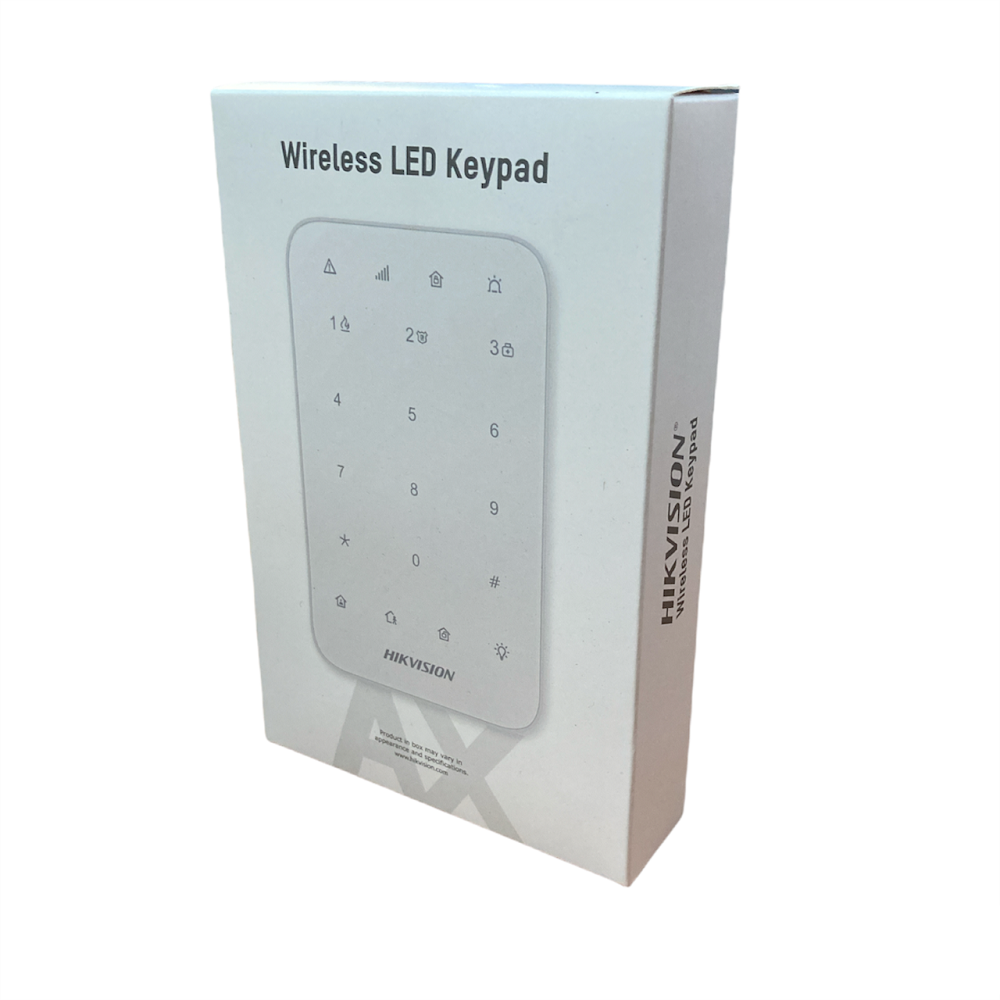

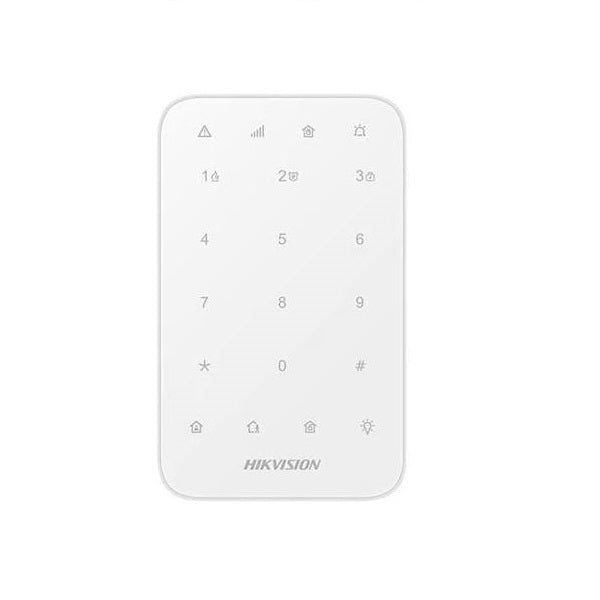

• Keypad

  8 (Including Tag reader)



• Wireless Repeater4
• Multi Transmitter6

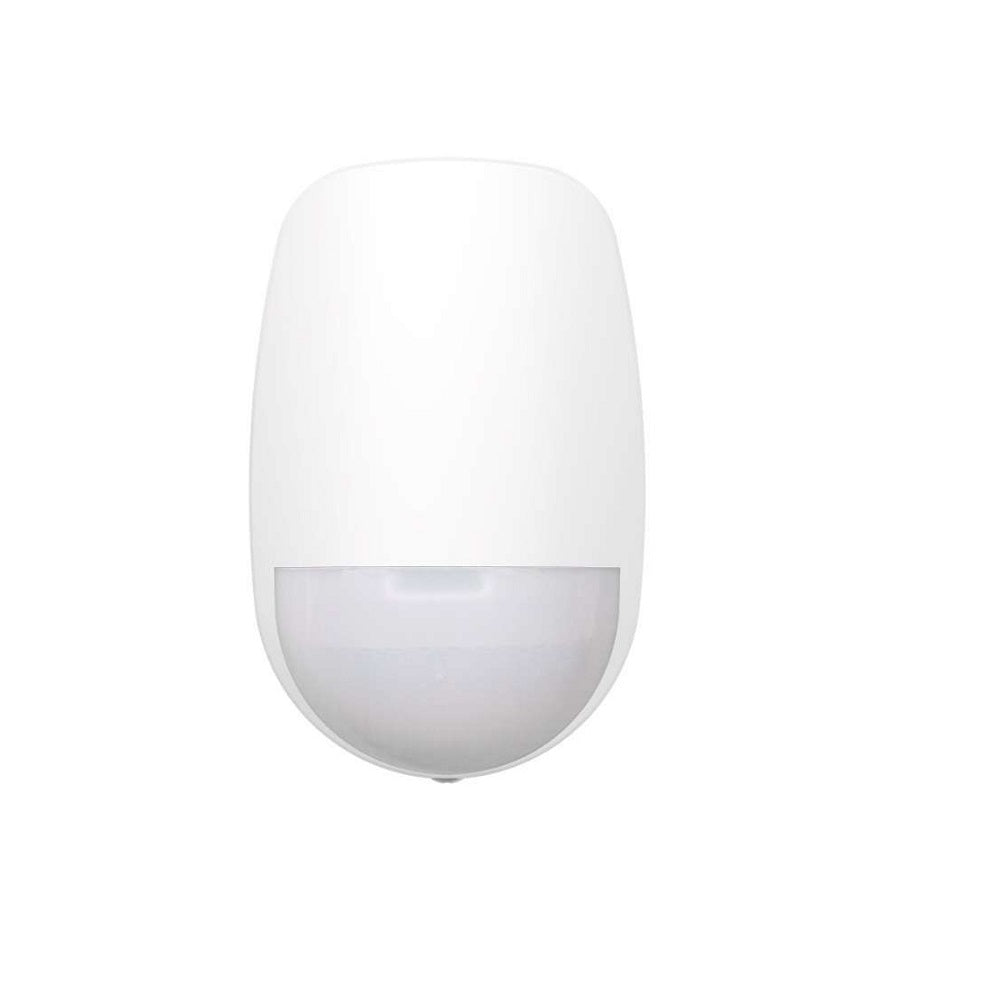

• PIR Cam

  Supported
