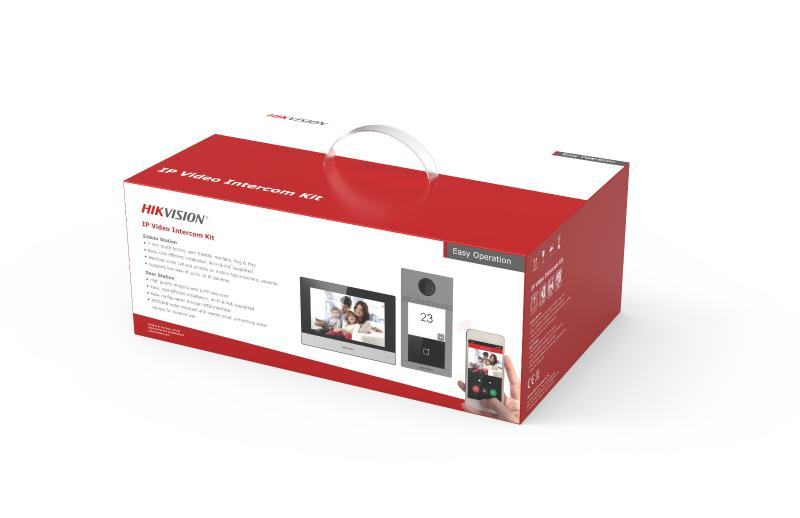

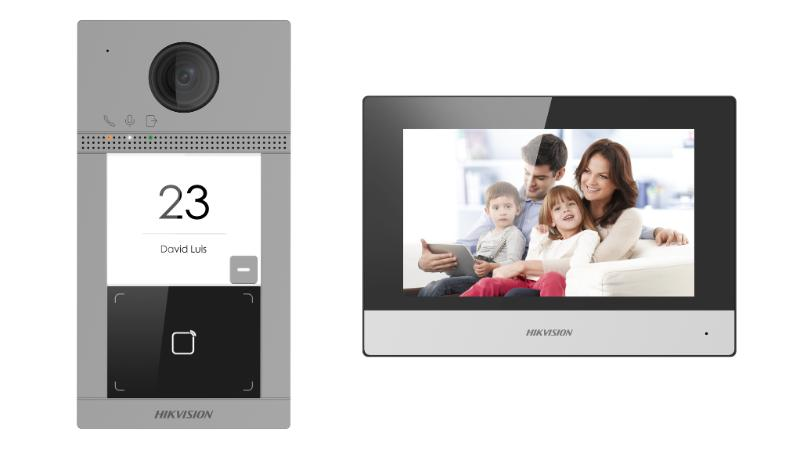

Hikvision DS-KIS604-S IP video intercom kit

Hikvision DS-KIS604-S IP video intercom kit

IP video intercom kit

• IP video intercom kit for villa or house
• One call button for easier calls
• Convenient Hik-Connect APP Mobile Control
• Stores messages and captured pictures in the TF card

• Power adapter included in the package

Specification

• Door Station/System Parameters

• Operation SystemEmbedded Linux operation system
• Flash

  32 M

  RAM

  256 M

  Door Station/Video Parameters

• Supplement LightIR supplement
• Resolution

  Main stream : 1920 × 1080

  Sub stream : 640 × 480

• Lens1
• WDRSupport
• FOVHorizontal: 124° Vertical: 75°
• Video Compression StandardH.264
• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker (more than 80 dB within 30 cm)
• Volume AdjustmentAdjustable
• Audio Compression StandardG.711 U, G.711 A
• Audio Compression Rate64 Kbps
• Audio Intercom

  Two-way audio communication



• Audio QualityNoise suppression and echo cancellation

• Door Station/Capacity Parameters

• User Capacity2000

• Door Station/Network Parameters

• Network ProtocolTCP/IP, RTSP
• Wi-FiWi-Fi 802.11 b/g/n
• Wired Network10/100 Mbps self-adaptive Ethernet
• 3G/4G/
• Bluetooth/

• Door Station/Device Interfaces

• Network Interface1
• RS-4852
• Wiegand0
• Lock Control2
• Exit Button2 Max.
• Door Contact2
• Alarm Input4
• Alarm Output0
• Power Interface1
• TAMPER1
• USB Interface0
• TF Card1 (reserved)

• Door Station/General
• Button1
• Indicator3
• Power Consumption

  ＜ 10 W



• Power Supply

  Standard PoE/12 VDC;IEEE802.3af, standard PoE

  12 VDC

• Working Temperature-40° C to 53° C(-40° F to 127.4° F)
• Working Humidity10% to 95%
• Dimension174 mm × 91 mm × 29 mm
• InstallationSurface mounting
• Application EnvironmentOutdoor
• Protection Level

  IP65, IK08



• Weight380 g

• Indoor Station/System Parameters

• Operation SystemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor Station/Display Parameters

• Display Screen7-inch colorful TFT screen
• Display Resolution1024 × 600
• Operation MethodCapacitive touch screen

• Indoor Station/Audio Parameters

• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Quality

  Noise suppression and echo cancellation



• Audio Compression Standard

  G.711 U



• Audio Compression Rate

  64 Kbps



• Indoor Station/Network Parameters

• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• Wired Network

  10/100 Mbps self-adaptive



• Wireless Network

  Wi-Fi 802.11 b/g/n



• Protocol

  TCP/IP, SIP, RTSP



• Indoor Station/Device Interfaces

• RS-4851
• Alarm Input8-ch alarm inputs
• Relay Output2
• TF CardMax to 32 G, SD 2.0 or lower version

• Indoor Station/General

• Power Consumption

  ≤ 6 W



• Power SupplyStandard PoE,12VDC
• Working Temperature

  -10 °C to 55 °C (14 °F to 131 °F)



• Working Humidity10% to 90%
• Dimension (L X W X H)

  200 mm × 140 mm × 15.1 mm (7.9" ×

  5.5 × 0.6\")"
