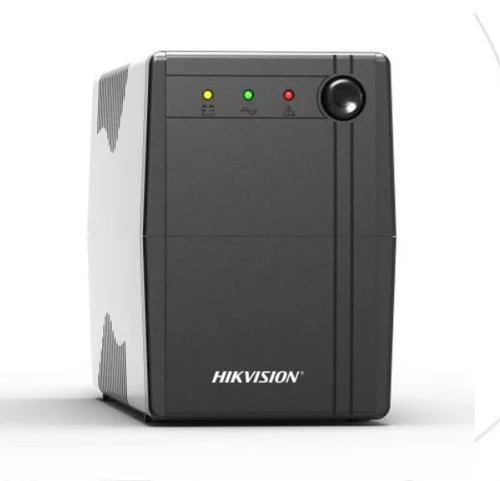

The Hikvision DS-UPS1000 Uninterruptible Power Supply is a compact and reliable solution for keeping your devices powered with its 1000VA capacity. With advanced microprocessor control, you can trust this UPS to deliver high performance for your devices.
Protection Method
|
Overload, discharge, and overcharge protection
|
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Humidity |
30% to 90% (non-condensing) |
| Weight |
Approx. 5.4 kg (11.9 lb) |
| Dimension |
274 mm × 95 mm × 139 mm (10.79″ × 3.74″ × 5.47″) |
| LED Indicator |
Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow |
| Alarm |
Charging Mode (DC mode): Sounding every 10 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding |
| Storage Conditions |
-10 °C to 50 °C (14 °F to 122 °F) Humidity 20% to 95% (non-condensing) |
| Capacity |
1000 VA / 600 W |
| Input Voltage Range |
220 VAC to 240 VAC |
| Input Frequency Range |
50/60 Hz |
| AC Voltage Regulation (Batt. Mode) |
220 VAC to 240 VAC |
| Frequency Range (Batt. Mode) |
50/60 Hz ± 0.5 Hz |
| Transfer Time |
DC to AC ≤ 10 ms; AC to DC ≤ 10 ms |
| Waveform (Batt. Mode) |
Charging Mode (DC Mode): PWM |
| POWER |
|
| Battery |
12 V/9 Ah × 1 |
| Rechargeable |
Typical recharge time: 10 to 16 hours |
