Description

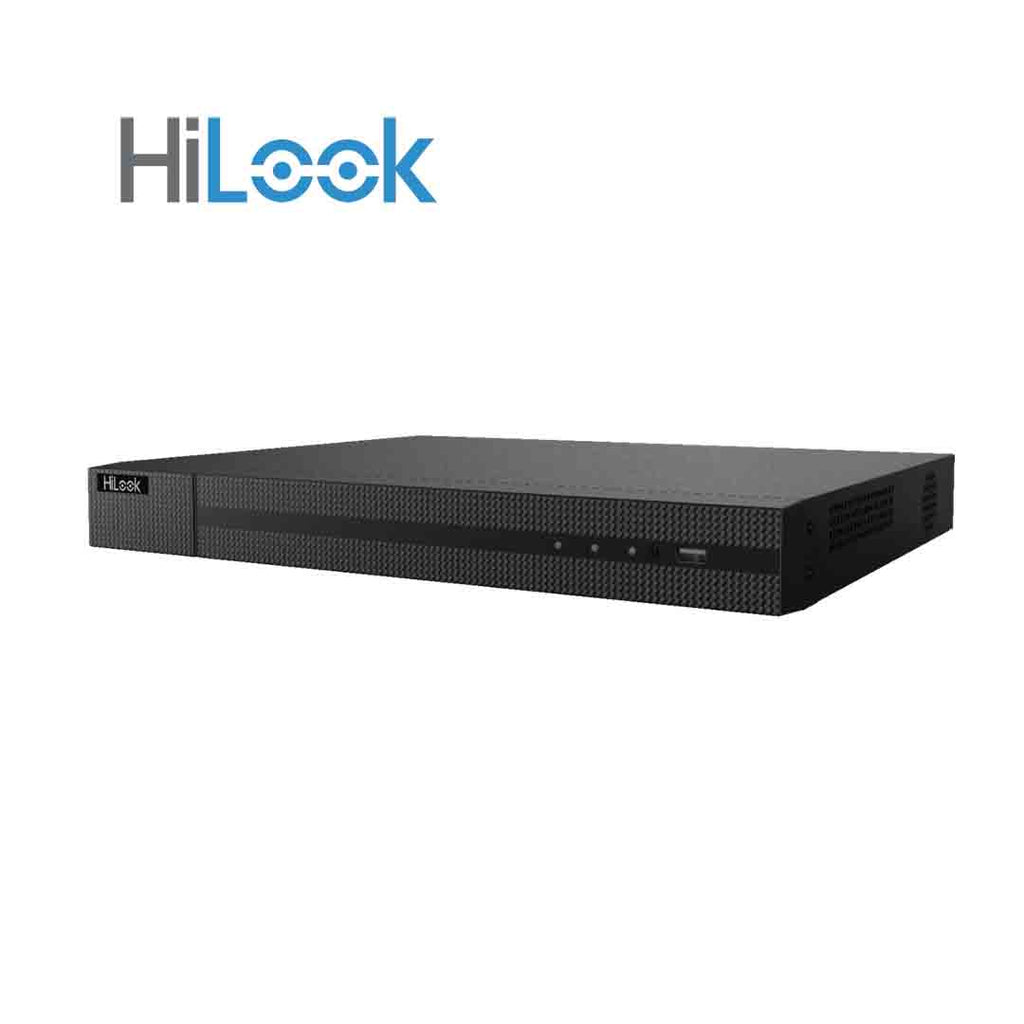

Hilook NVR 4 Channels NVR-104MH-C/4P
4-ch PoE 1U K Series AI 4K NVR
- Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt HiLook AI technology to minimize manual effort and security costs
Hilook NVR 4 Channels NVR-104MH-C/4P
Specification
-
ntelligent Analytics
- AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
- AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
-
Facial Recognition
- Face AttributesN/A
- Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture Comparison (Captured From Camera)2-ch
-
Motion Detection 2.0
- By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
-
Perimeter Protection
- By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
-
Video And Audio
- IP Video Input4-ch
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI1/VGA simultaneous output
- CVBS OutputN/A
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
-
Decoding
- Decoding FormatH.265/H.265+/H.264+/H.264
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback4-ch
-
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
-
Network
- Remote Connection128
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
-
PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 50 W
- StandardIEEE 802.3af/at
-
Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
-
General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply48 VDC, 1.35 A
- Consumption≤ 10 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
- Weight≤ 1 kg (without HDD, 2.2 lb.)
-
Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE-EMC，RCM
Warranty HiLook NVR-104MH-C/4P
PRO MAX VISION guarantees that goods will be of acceptable quality, meaning they will be fit for their intended purpose, have no defects, be safe and durable.
All new products sold by PRO MAX VISION are covered by a 24 month warranty or the manufacturers warranty whichever is the greater.
PRO MAX VISION will accept returns under warranty for repair or replacement where the product is found to be defective/faulty, not fit for its intended purpose, does not match the specification or description or the part was incorrectly supplied.
Our warranty is limited to the replacement of faulty items or parts and does not include the labour costs for installing the purchased item, nor does it include damage due to incorrect fitting of parts or accessories.
Download
Data Sheet NVR-104MH-C/4P
Steps Setup NVR-104MH-C/4P
