Description

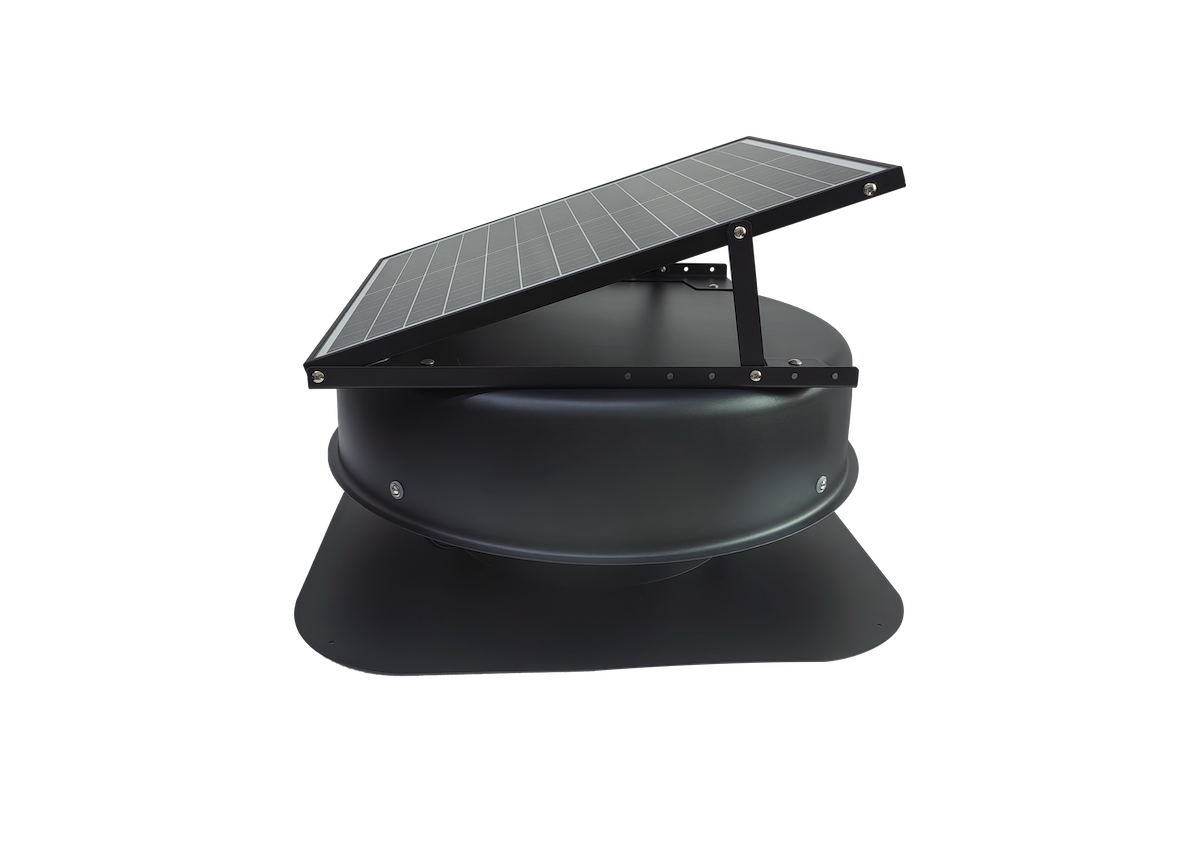

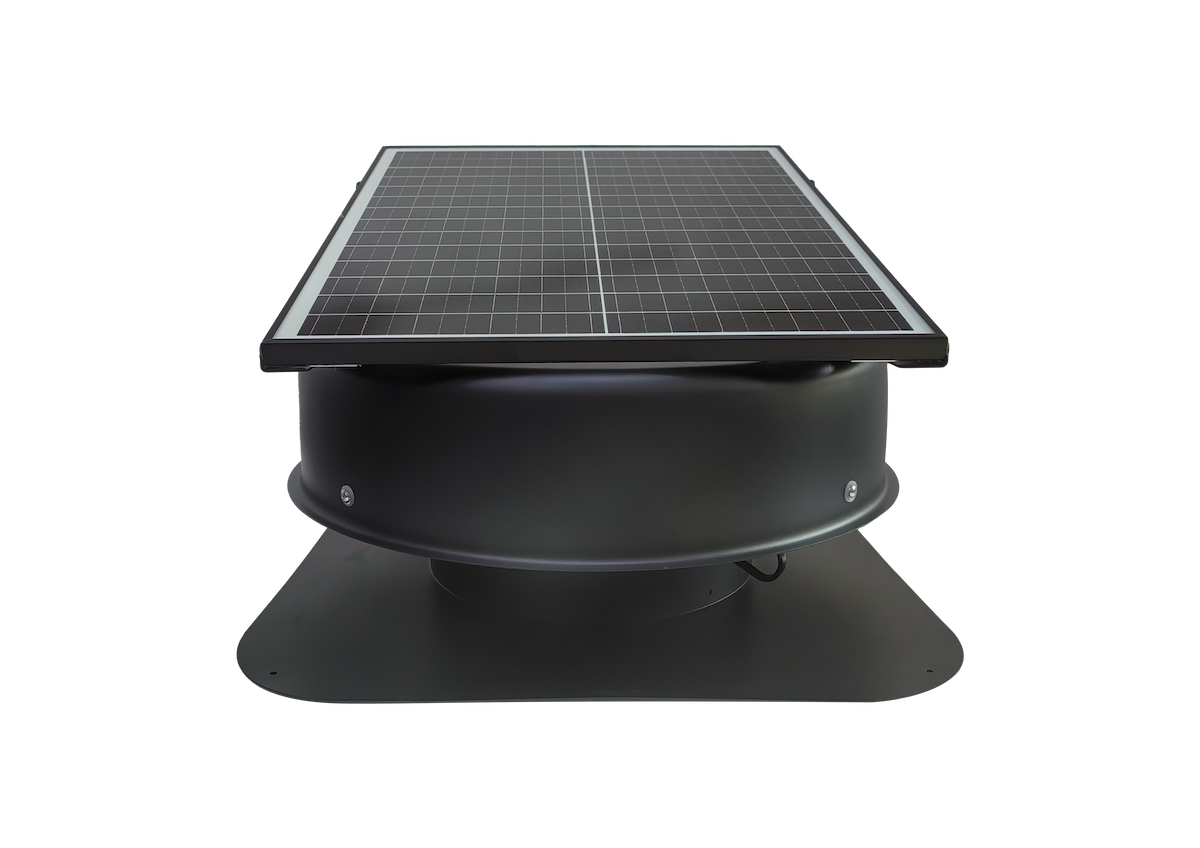

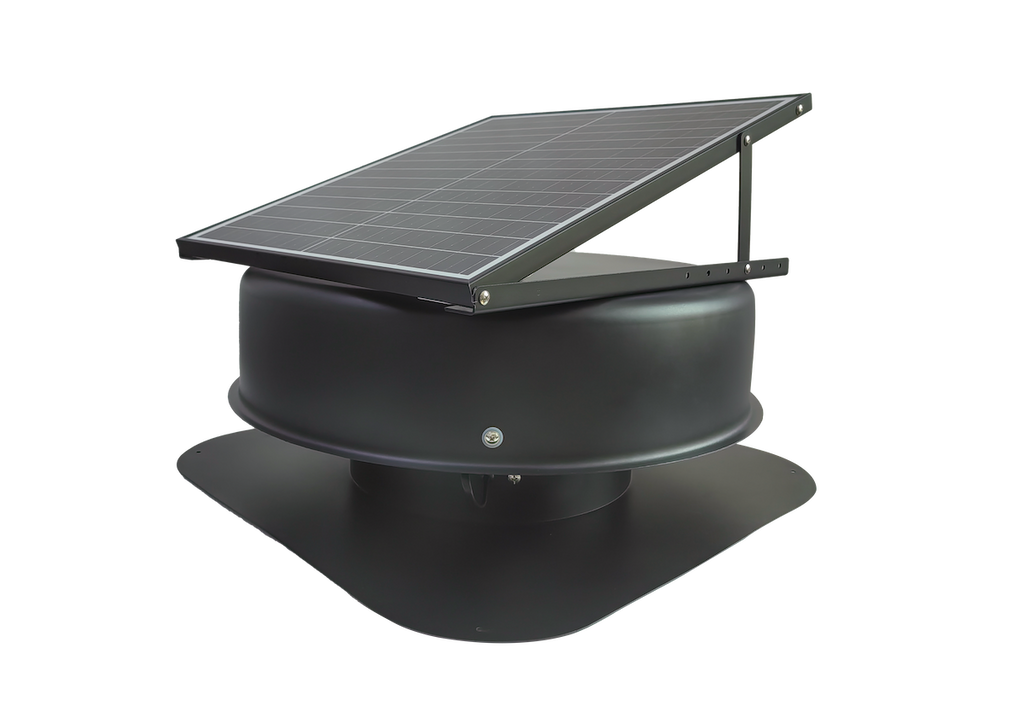

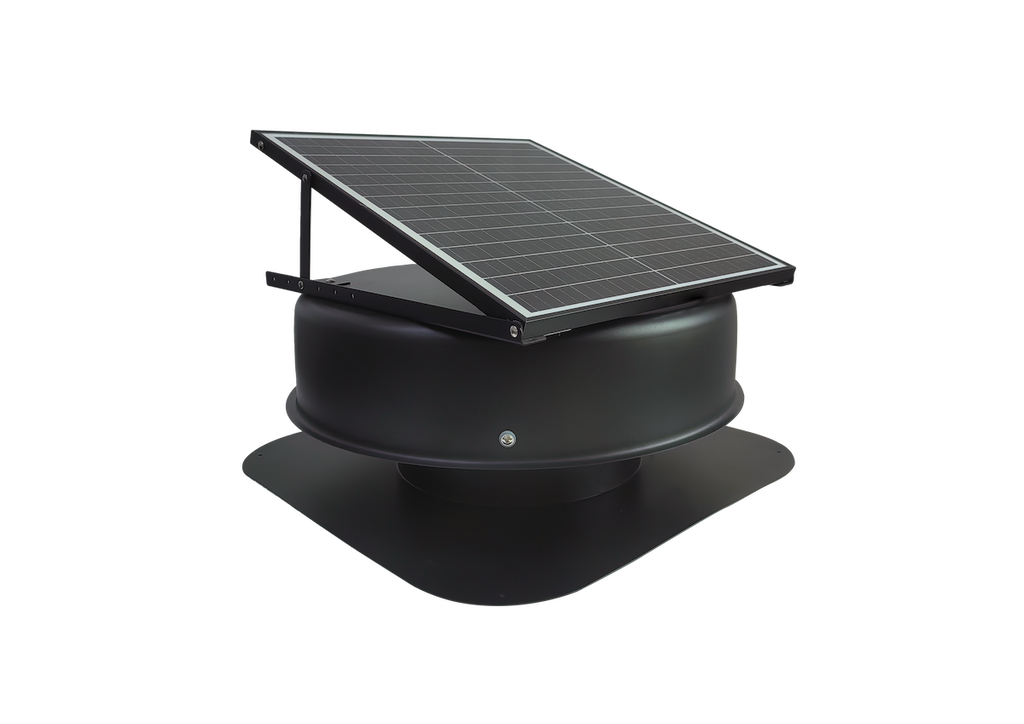

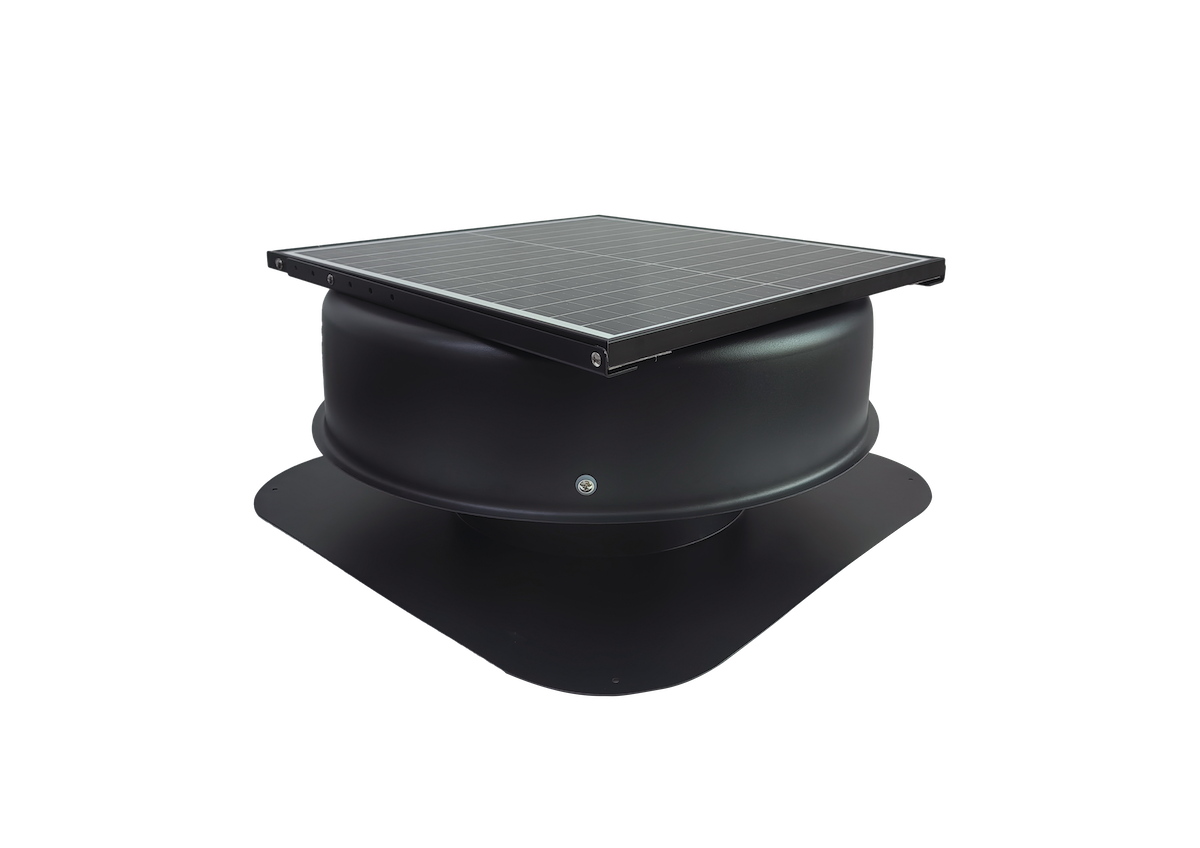

Solar Roof Ventilation Fan 320MM V3
Australian summers continue to get hotter and so do our homes. A great way to make your home or business cooler in summer is to use solar roof ventilation like the SolarKing solar fan. Roof temperatures in Australia during summer often reach 50 to 70°C and the best way to reduce these high temperatures in to install the SolarKing roof fan
Many homes already wind driven “whirly birds” installed on roofs. Whirly birds rely on highs winds to produce any benefits and even then they only move around 100CBM per hour for each unit. Compare this to the SolarKing that moves 2100CBM per hour, there is no comparison.
The SolarKing solar exhaust fan uses the sun and only starts working when your roof space reaches 25°C so as not to remove warm air in the winter when it is needed to keep your house warm (whirly birds operate regardless of the temperature. When the sun disappears in the evening the SolarKing will stop ventilating but at this time the roof is now cooling naturally with the reduce temperature as the fan has been extracting during the day.
Have you ever noticed how the lower level of a 2 storey home is always cooler than the upper level? This is due to the upper storey blocking extreme heat from the lower level. The SolarKing solar roof ventilation fan does the same thing, the fan replaces the hot air inside your roof with the cooler outside air. This greatly lowers the extreme heat in your roof pushing into to your living space.
You can also add closable vents in the ceiling of your home that can be opened when a cool change comes through to draw the cooler air in through your open windows and doors. Normally you would position these vents near the centre of your home to extract maximum hot air. This air is then extracted along with the hot air in your roof by the SolarKing solar fan.
So if are looking to make a big change to your comfort levels this summer and looking to reduce the high costs of power using air conditioners, let the free power of the sun to do the work for you and use you air conditioning a great deal less.

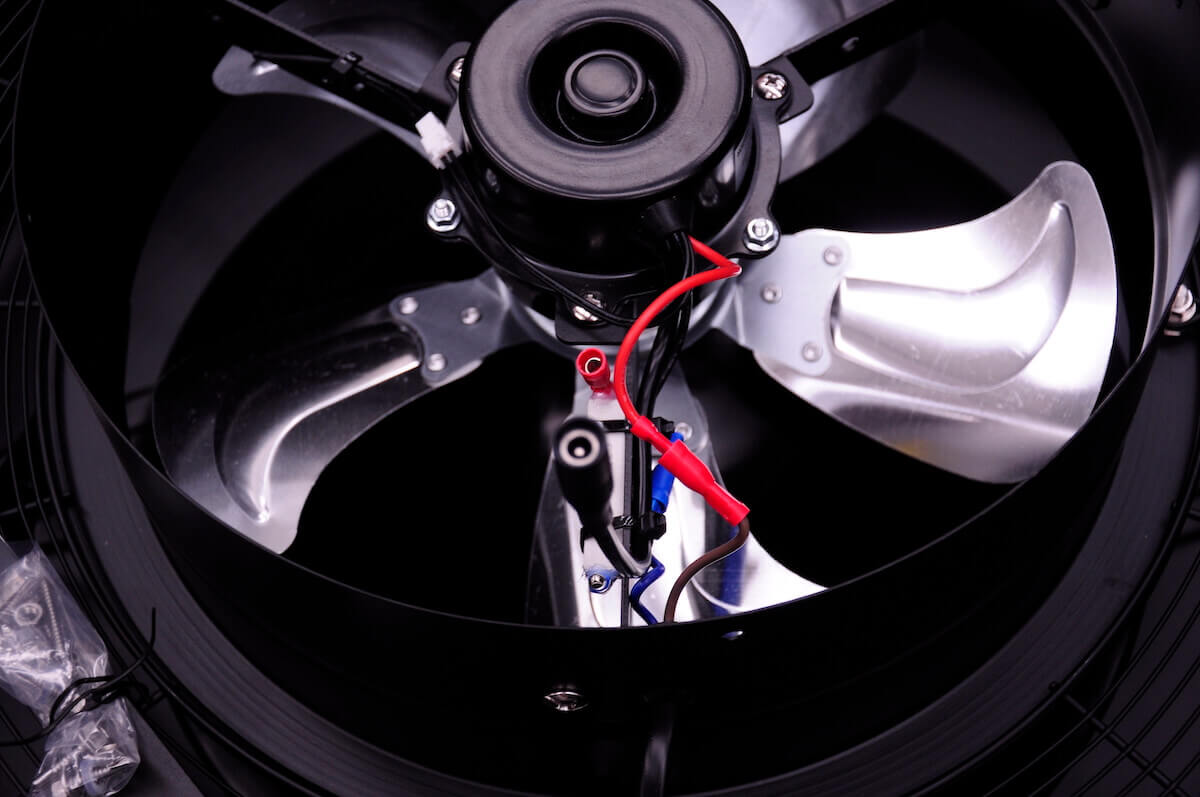

This latest V2.6 Model now has a DC power connection so you can connect the optional 15V/240V Power pack so the fan can now operate after the sun goes down. The unit will switch to the power pack automatically and then when the solar level increases again the unit will switch back to solar operation. The unit will still turn off automatically when the temperature drops below 25 degrees. Another update with the V2.6 is the motor now keeps a stable speed when operating on solar rather than instantly speeding up and slowing down as clouds go past. The motor still runs at max speed in full sun but wont suddenly slow down and speed up when clouds pass. The V2.6 is now the lowest noise output and has very quiet operation.
Resource
-
SolarKing 320mm Solar Roof Ventilation Fan V2_Final
-
6757_SolarKing-320MM-Solar-Fan_Instructions-Metal-Roof
-
6752_SolarKing-320MM-Solar-Fan_Instructions-Tile-Roof
-
SolarKing Residential Solar Fan Warranty Document 2023
Advantages
Keep Your Home Comfortable
In the hot Australian summer the SolarKing Exhaust Fan extracts the dry and hot air in the roof. 20x more air than a wind driven Whirly Bird and can reduce roof temperatures by up to 30°.
During the cooler months, the thermostatic control of SolarKing Exhaust Fan prevents heat loss and retaining much needed warmth unlike whirly birds that continue to run.
Save Your Energy
The SolarKing Exhaust Fan consumes free solar energy, which means no running cost ever.
Also by reducing your roof temperature, your reliance on air conditioning will reduce and lower your energy bills.
Easy Installation and Superior Performance
The SolarKing Exhaust Fan can be self-installed or you can use one of our approved installers to do the job for you. Just a 320mm opening in the roof will be required.

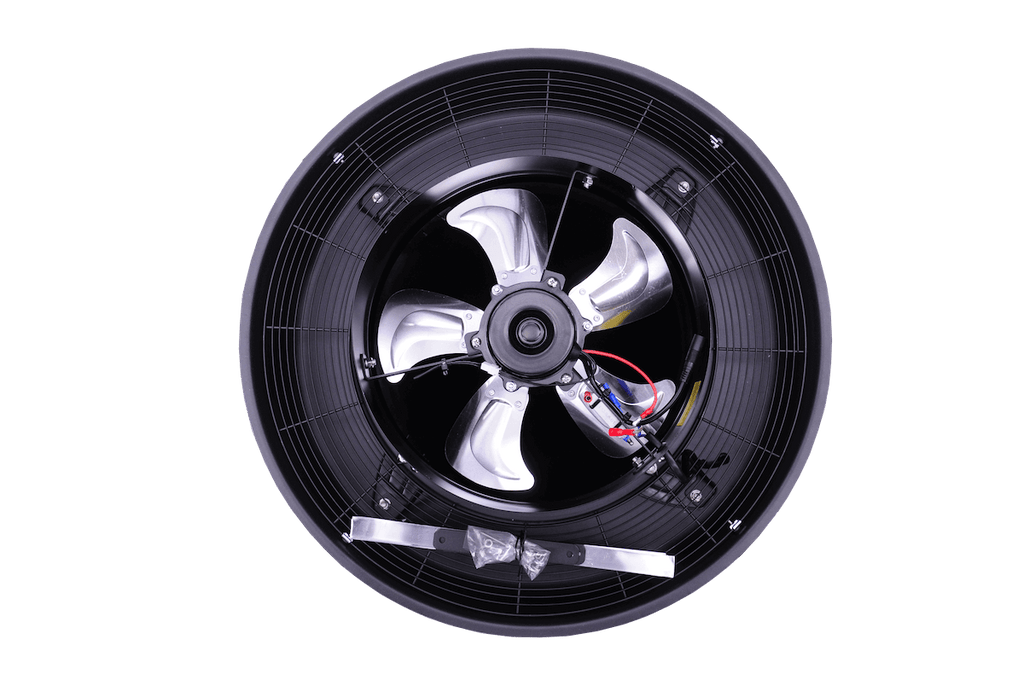

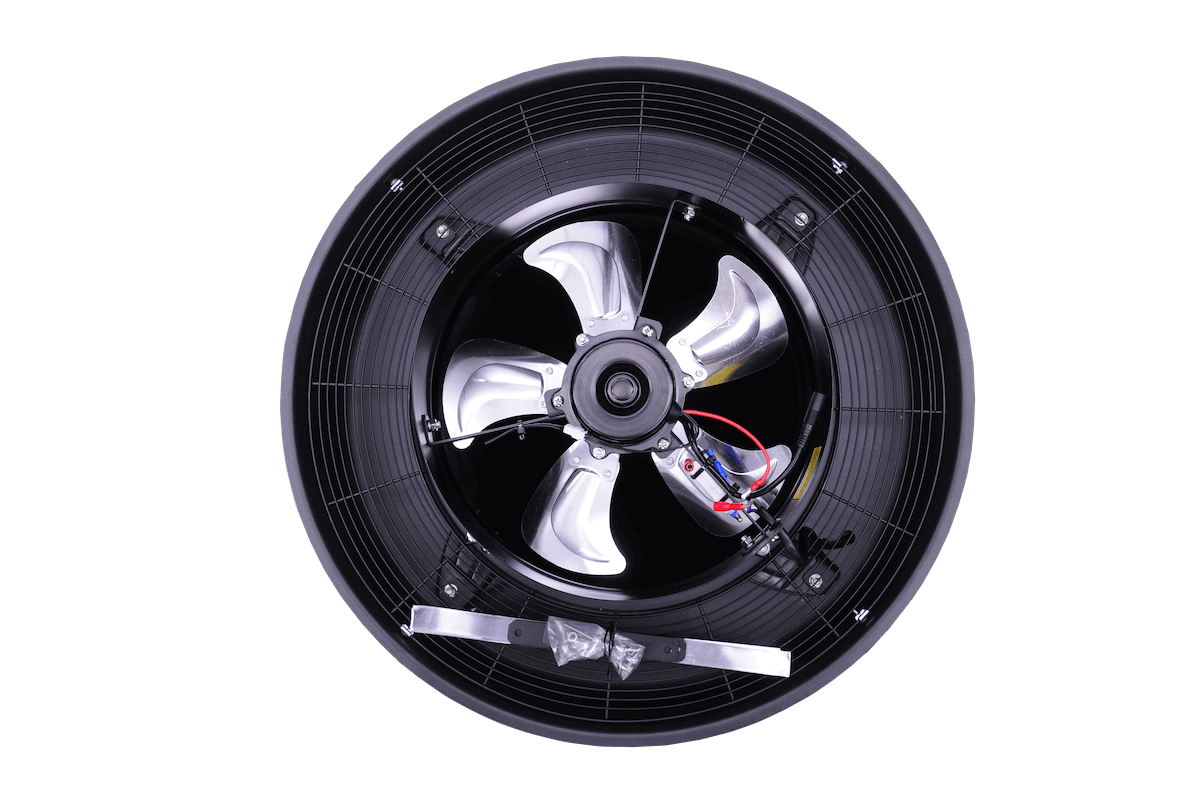

The brushless DC motor makes the operation quiet and assures the motor will have long life. Being brushless it is also far more efficient compared to other motors so the performance is better.
Features:
•Solar-Powered:
Operates using a 40W monocrystalline PV panel, providing energy directly from the sun with no additional running costs.
•Motor:
High-performance 35W brushless motor (40W max) ensures quiet and efficient operation with long-lasting durability.
•Thermostatically Controlled:
The fan automatically activates when the temperature reaches a certain level, ensuring efficient cooling only when needed, and turns off when temperatures drop.
•High Airflow Design:
Capable of delivering substantial airflow, reducing roof space temperatures and easing the load on air conditioning systems.
•Roof Compatibility:
Designed to fit both tile and metal roofs, offering versatility in installation.
•Quiet Operation:
The brushless motor ensures low noise, making it ideal for homes and commercial spaces.
•Durable Construction:
With a black powder-coated finish, the fan is robust and corrosion-resistant, suitable for various climates, including coastal regions.
Specifications:
• Model: 320MM SRVF V3 (Latest Version)
• Motor Power: 35W (40W max), brushless motor for quieter, longer-lasting operation.
• Voltage: 15V
• Solar Panel: 40W Monocrystalline PV, 15V, providing reliable and efficient energy generation.
• Dimensions: 575mm x 575mm x 275mm, compact yet powerful for efficient ventilation.
• Weight: 9 kg, making it lightweight and easy to install.
• Noise Level: Less than 45dBA, ensuring quiet performance.
• Automatic Shutoff: Turns off automatically when temperatures drop below 25°C.
• Color: Black, blending well with most roof types and materials.
Package
1x SolarKing 320mm V3 Solar Roof Ventilation Fan
