Description

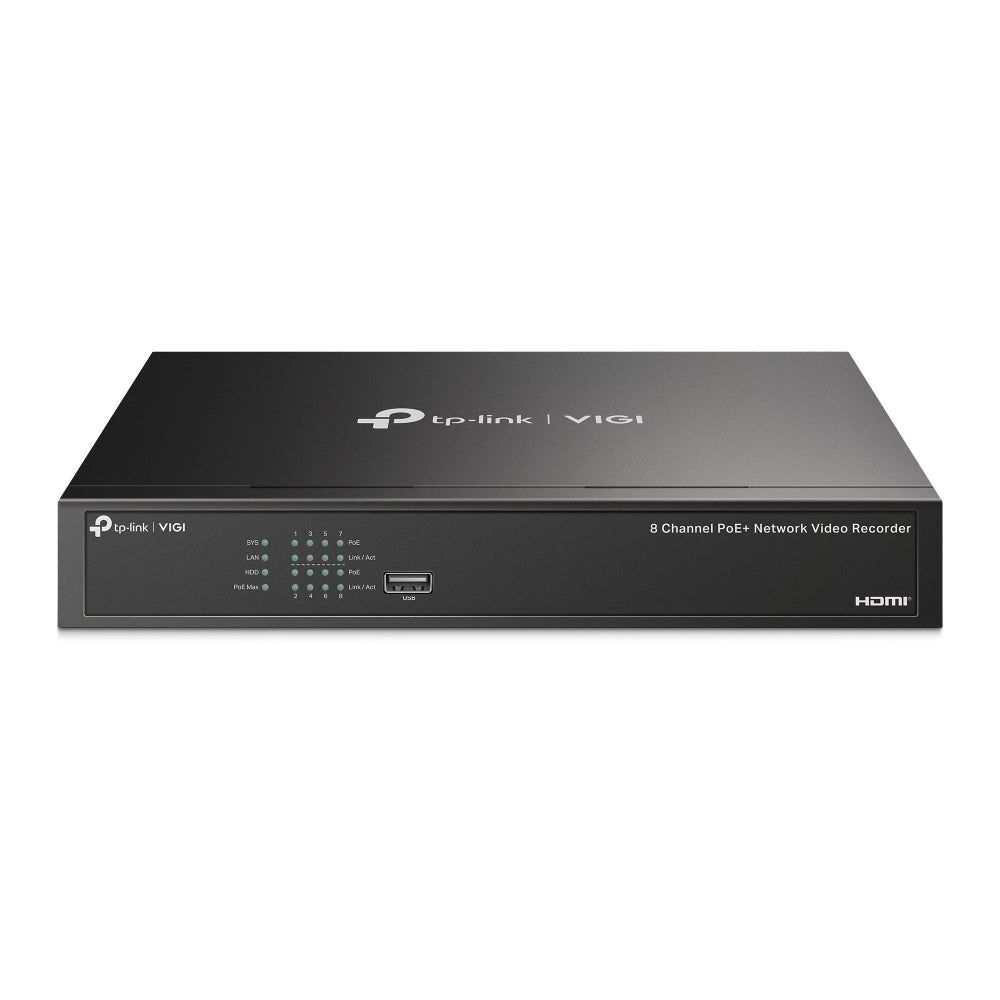

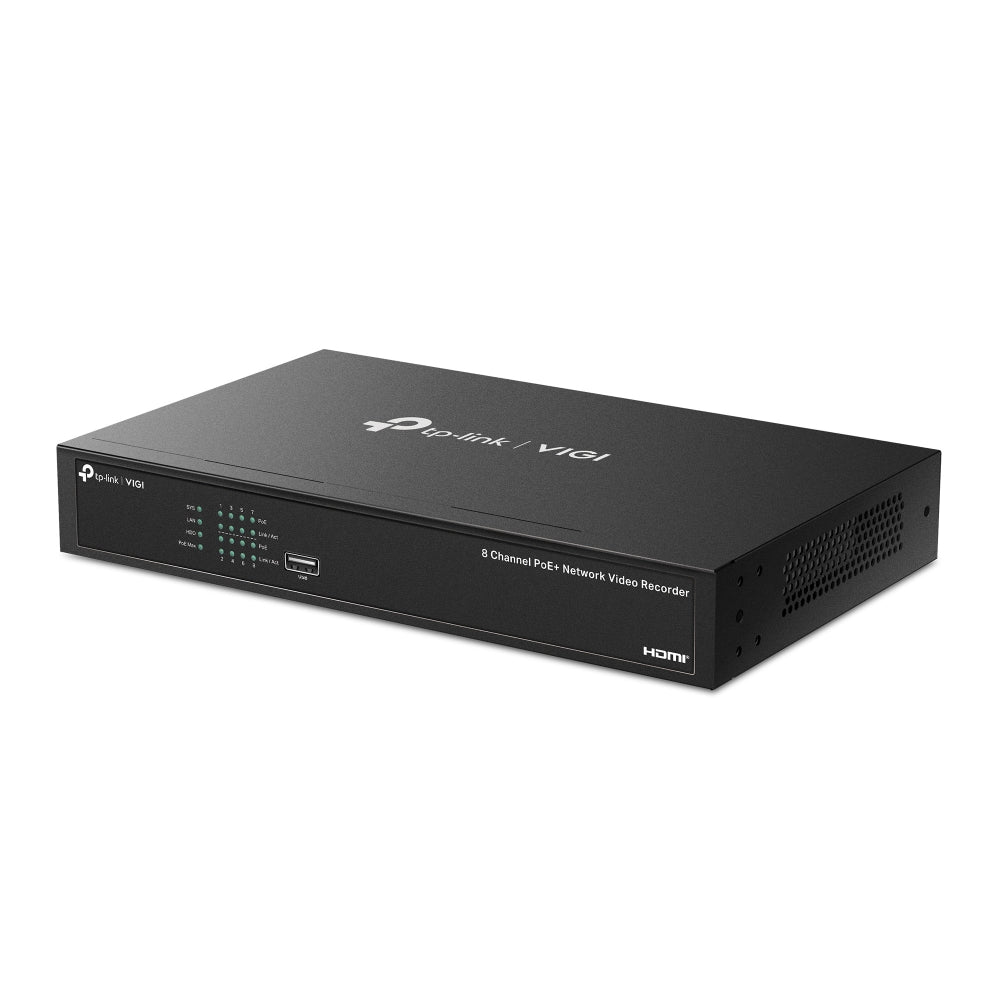

tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE
VIGI 8 Channel PoE+ Network Video Recorder
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 113 W PoE Budget△
- 8-ch @ 2MP/ 4-ch @ 4MP Decoding Capability
- 8-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 10 TB) *
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Specifications
Video and Audio |
|
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
DECODING |
|
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
Record Management |
|
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
NETWORK |
|
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

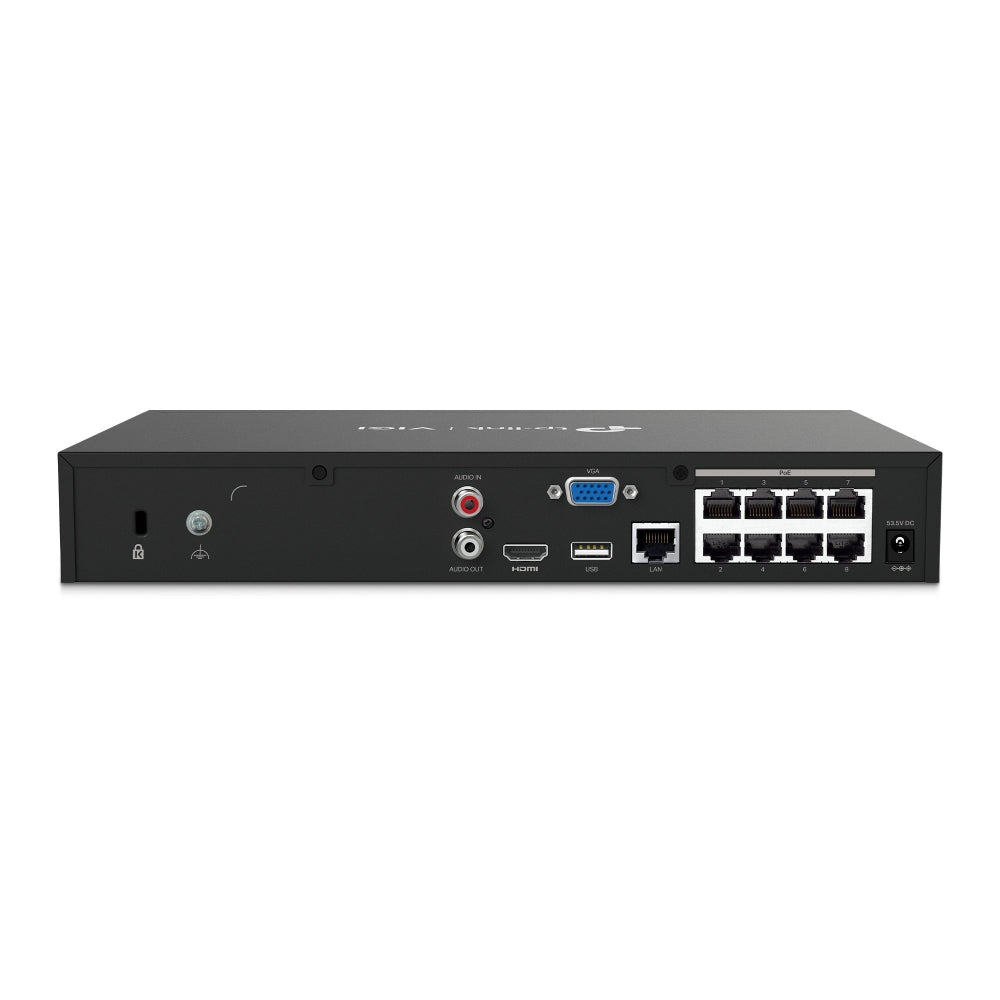

External Interface |
|
|---|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
HARD DISK |
|
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB Capacity for Each HDD |
PoE |
|
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 113 W Available for All PoE+ Ports, 30 W Max per Port |
Alarm |
|
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
GENERAL |
|
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Quick Installation Guide |
| Working Temperature | NVR: -10–55 °C Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 294 × 180 × 44 mm |
| Net Weight | 1.12 Kg |
| Gross Weight | 2.2 Kg |
| Power Supply | 53.5V DC/2.43A |
| Power Consumption | • 2.38 W (Without Disk) • 12.94 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
